Home › Hyundai › 2012 › Genesis Coupe 2.0T, Standard Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Manual Transmission Control System › Shift Lever › Components and Component Locations › Components

Components and Component Locations: Components

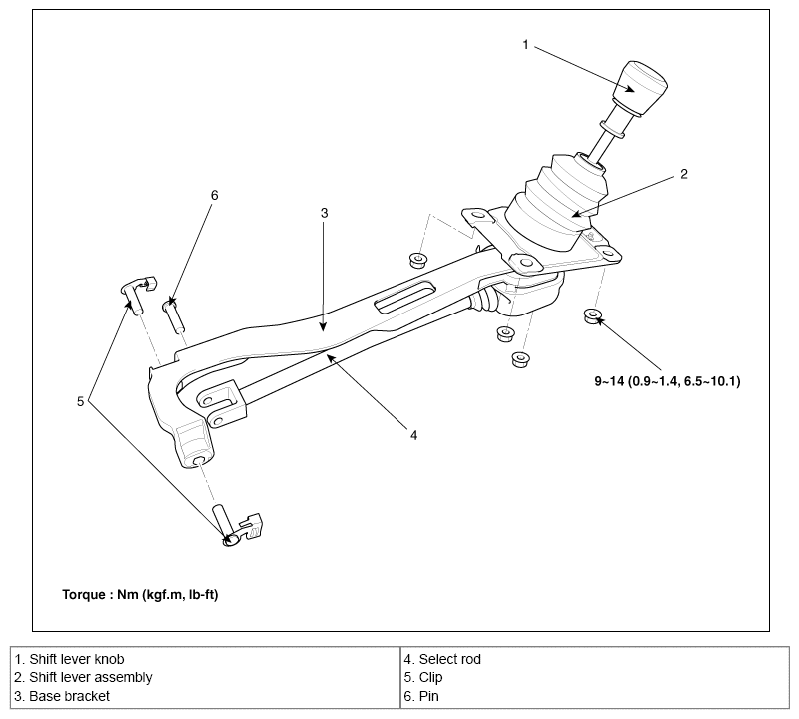

Fig 1: Shift Lever Replacement Components With Torque Specifications
G06514246Courtesy of HYUNDAI MOTOR CO.
