Components & Components Location

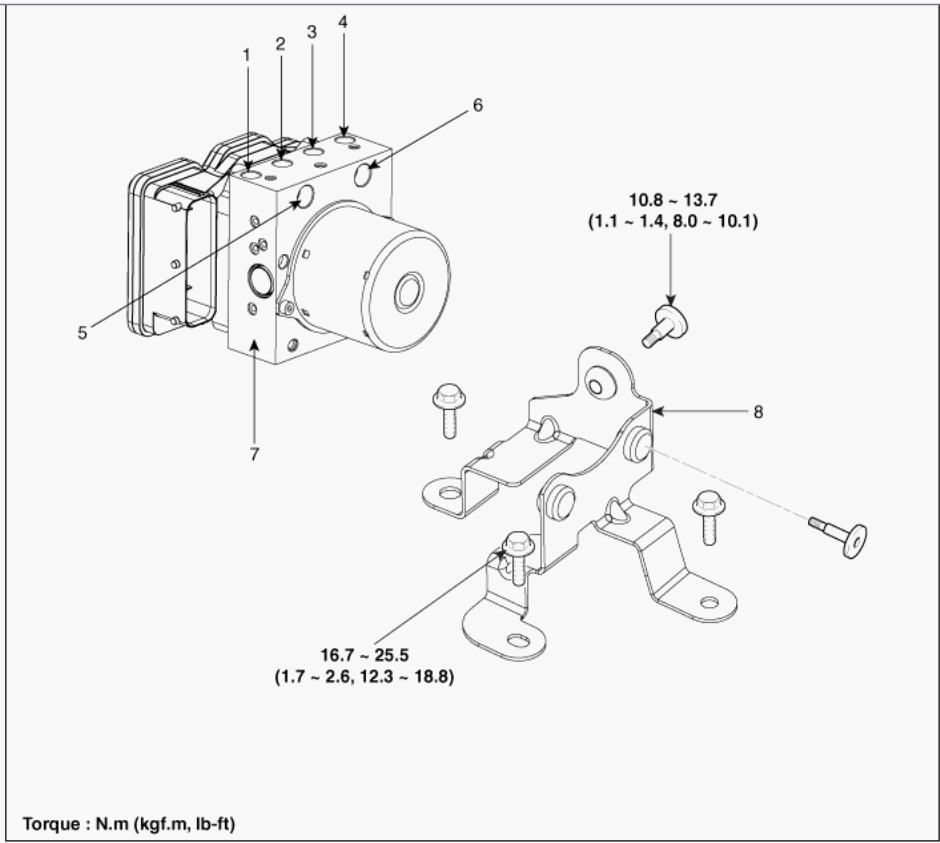

Fig 1: ESC Control Module Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR CO.

1. Front-left tube	5. MC2
2. Rear-right tube	6. MC1
3. Rear-left tube	7. ESC control module (HECU)
4. Front-right tube	8. Bracket
