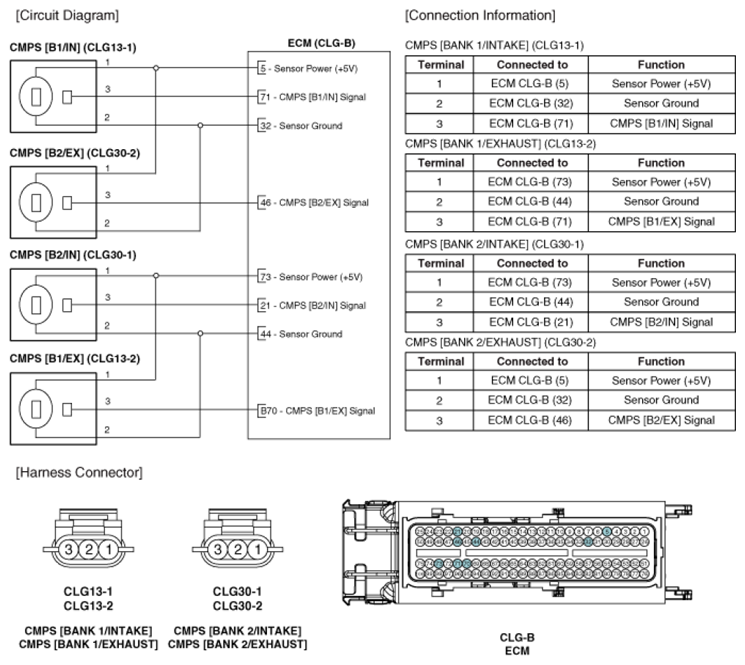

Home › Hyundai › 2012 › Genesis Coupe 3.8 Track, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram
