Wave Form

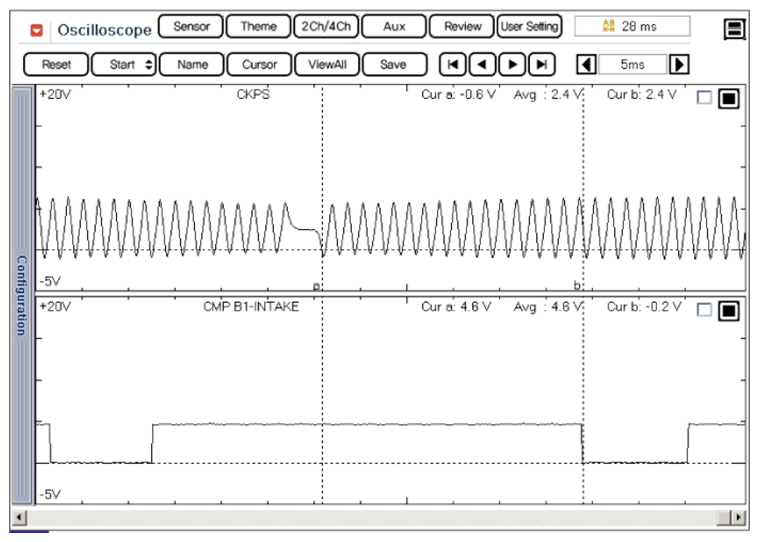

Fig 1: CKPS & CMPS - Waveform Graph (Normal Waveform at idle)
G06511475Courtesy of HYUNDAI MOTOR CO.
