Power Window Switch
›
Components and Components Location
›
Components
›
Power Window Main Switch
Power Window Main Switch

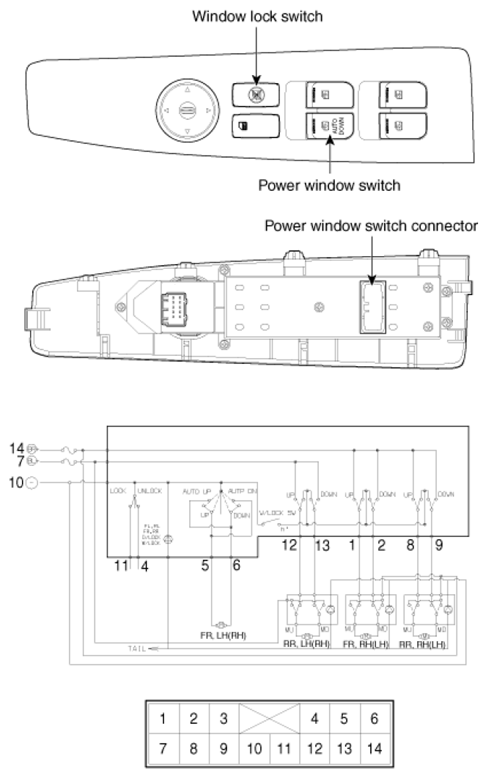

Fig 1: Identifying Power Window Main Switch With Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
