Components and Components Location: Components

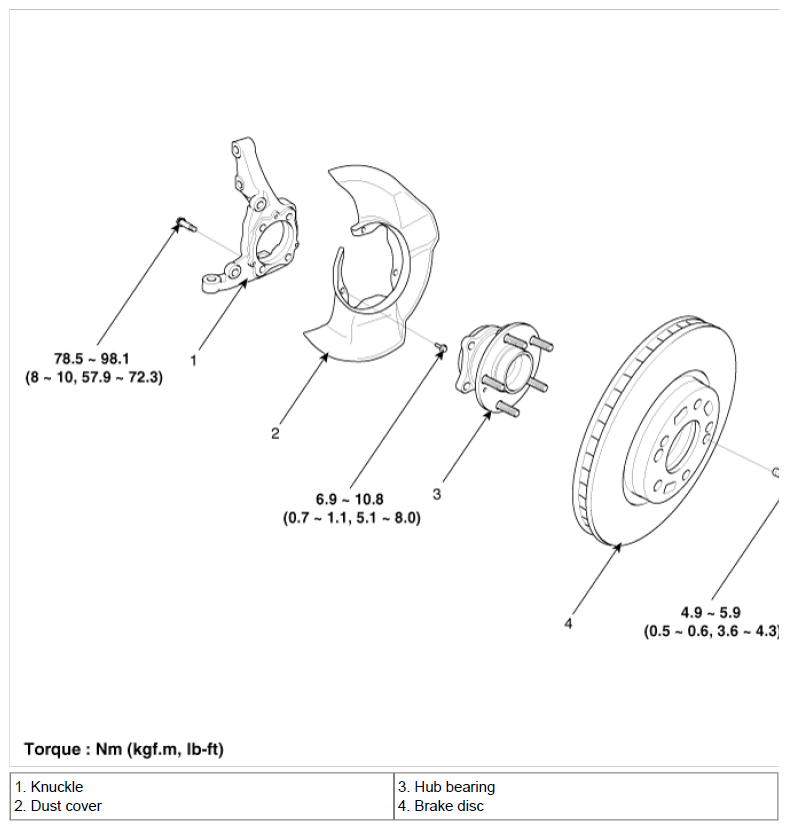

Fig 1: Exploded View Of Front Hub With Torque Specifications
G06847038Courtesy of HYUNDAI MOTOR CO.
