Special Service Tools
SPECIAL SERVICE TOOLS
| Tool (Number and Name) | Illustration | Use |
|---|---|---|
| 09222-32100 Valve stem oil seal installer |
Installation of the oil pump oil seal | |
| 09555-21000 Bar |
Removal and installation of the oil seal (Use with 09573-33100, 09573-33000, 09573-21000) | |
| 09561-11001 Steering wheel puller |
Removal of steering wheel | |
| 09568-34000 Ball joint puller |
Separation of the tie rod end bail joint | |
| 09572-21000 Oil pressure gauge |
Measurement of the oil pressure (Use with 09572-22100, 09572-21200) | |
| 09572-21200 Oil pressure gauge adapter |
Measurement of the oil pressure (Use with 09572-21000, 09572-22100) | |
| 09572-22100 Oil pressure gauge adapter |
Measurement of the oil pressure (Use with 09572-21000, 09572-21200) | |
| 09573-21100 Oil seal installer |
Installation of the back up washer and oil seal (Use with 09753-21000, 09573-33100, 09555-21000) | |
| 09573-33100 Oil seal guide |
Removal and installation of the oil seal (Use with 09573-21000, 09573-33000, 09555-21000) | |
| 09432-21600 Bearing installer |
Installing the pinion gear bearing | |
| 09434-14200 Counter shaft bearing installer |
Installing the gear box oil seal | |
| 09565-11100 Preload socket |
Measuring the pinion shaft preload | |

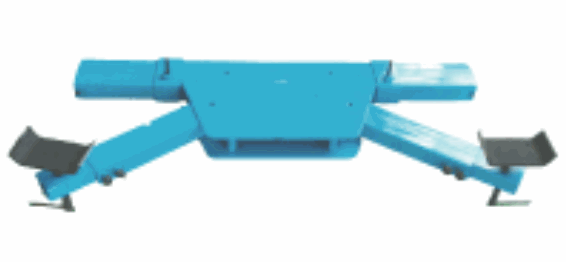

| 09624-38000 Crossmember supporter |
Supporting of the crossmember |
