Components And Components Location: Components

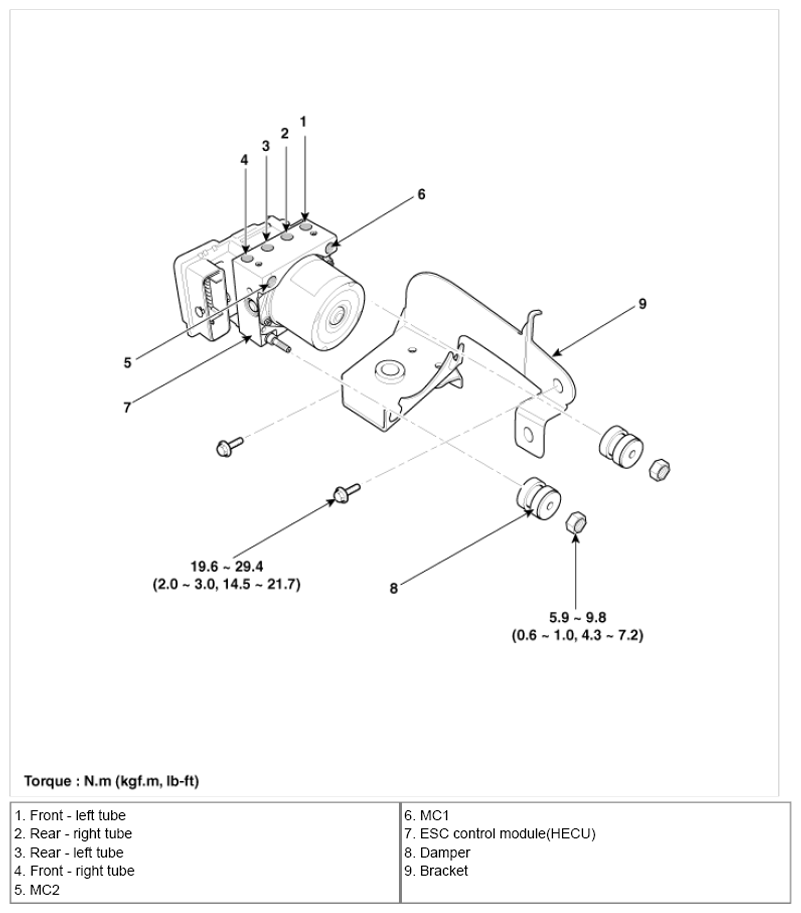

Fig 1: Exploded View Of ESC Control Module With Torque Specifications
G07359359Courtesy of HYUNDAI MOTOR CO.
