Repair Procedures: Inspection

Disconnect the ignition switch connector (A) and key warning switch connector (B) from the steering column.

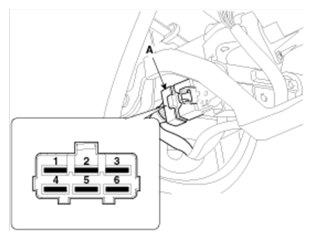

Fig 1: Identifying Ignition Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.

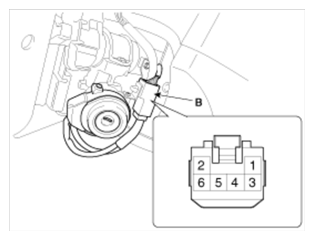

Fig 2: Identifying Key Warning Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

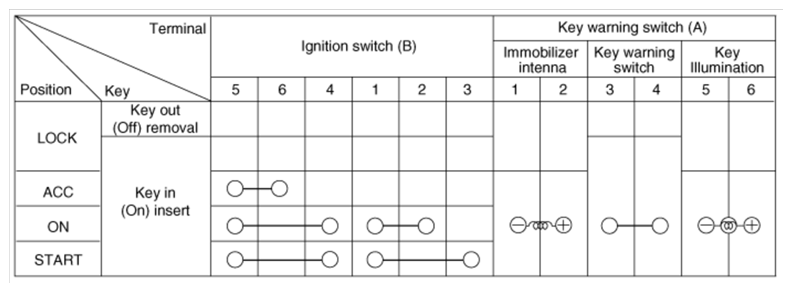

Fig 3: Ignition Switch And Key Warning Switch Terminal Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
