Components And Components Location: Components

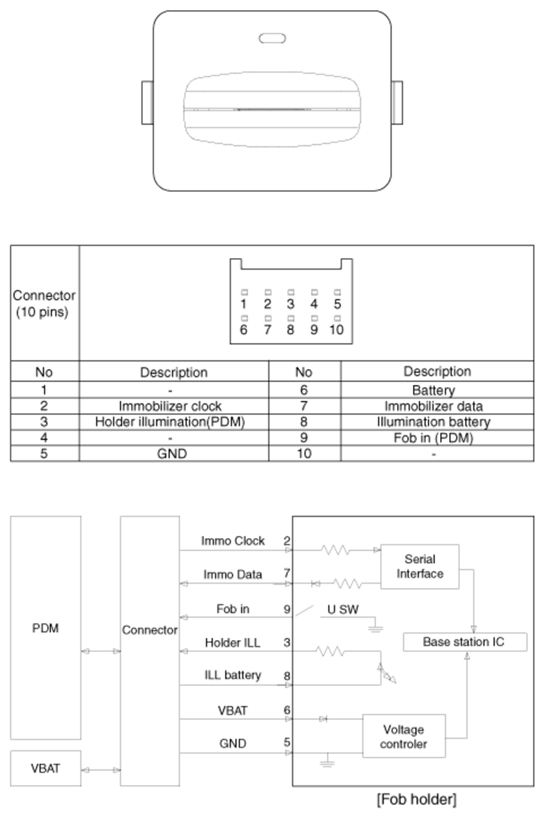

Fig 1: Identifying Fob Holder Connector Terminals
G07364784Courtesy of HYUNDAI MOTOR CO.
