Engine Control System - 2.4L (Except HEV)
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

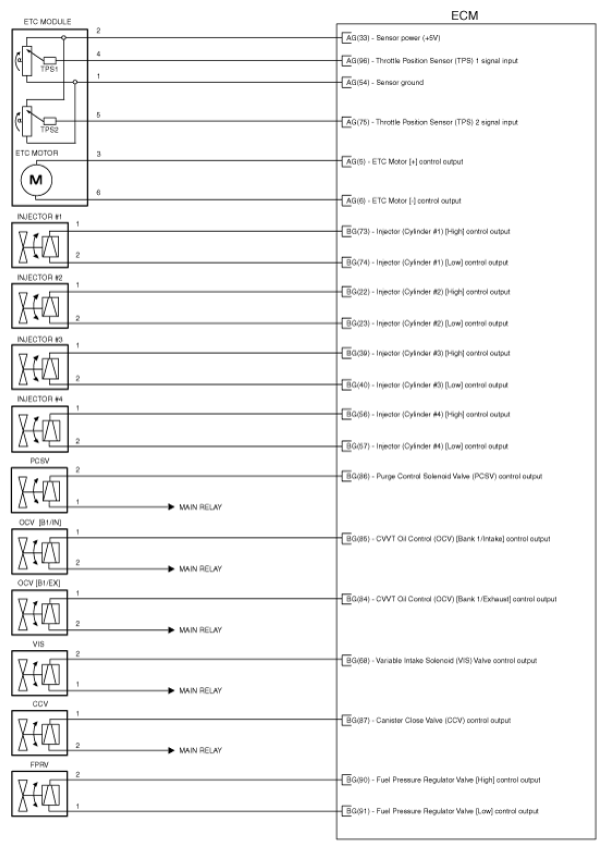

Fig 1: ECM Circuit Diagram (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

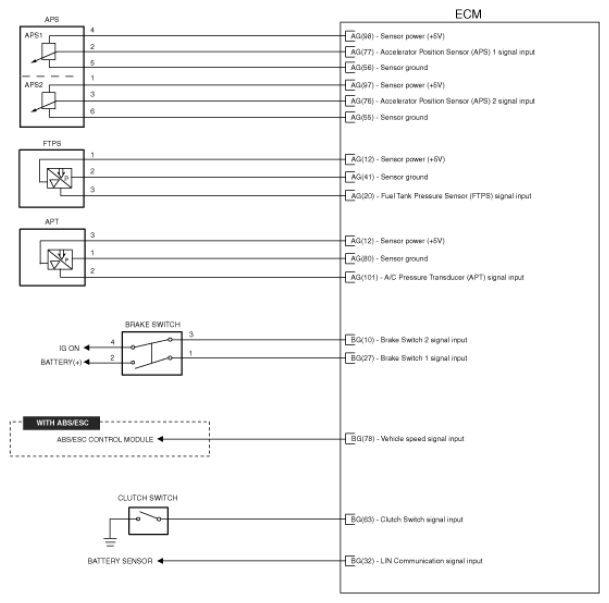

Fig 2: ECM Circuit Diagram (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

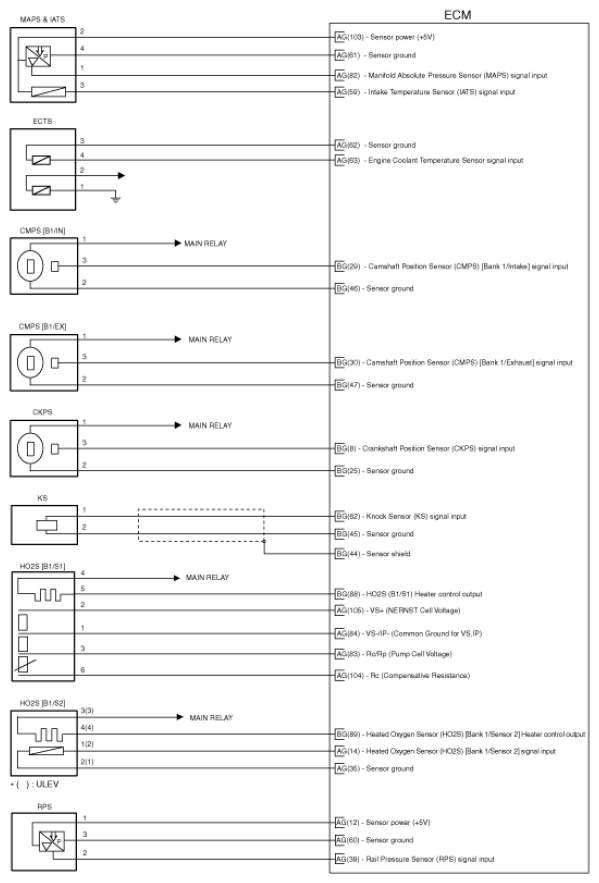

Fig 3: ECM Circuit Diagram (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

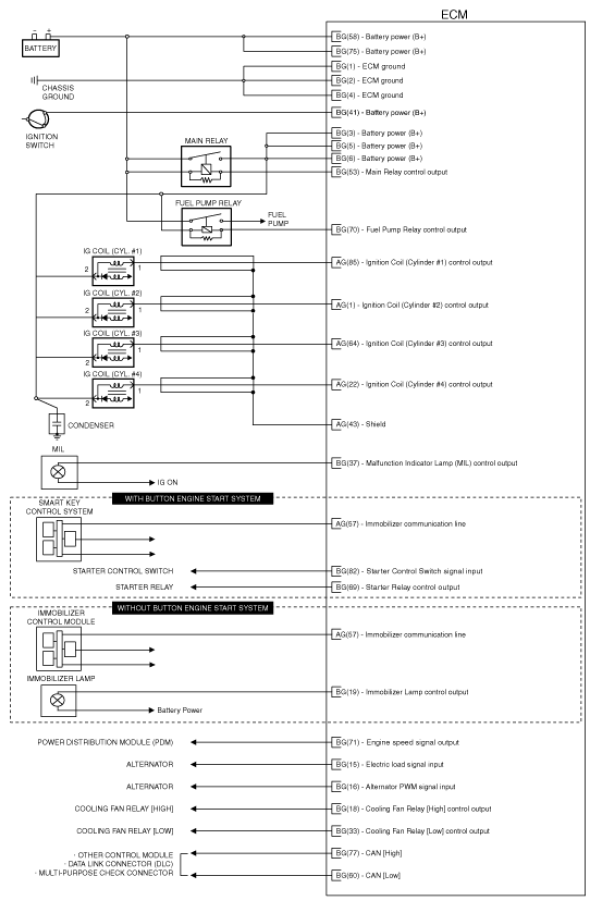

Fig 4: ECM Circuit Diagram (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
