Neutralization Status Check

WARNING: This page is about a different variant/trim than selected.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

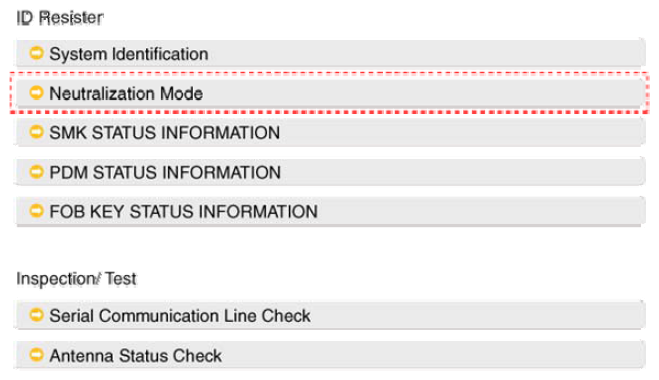

Fig 1: Selecting Neutralization Mode
Courtesy of HYUNDAI MOTOR CO.

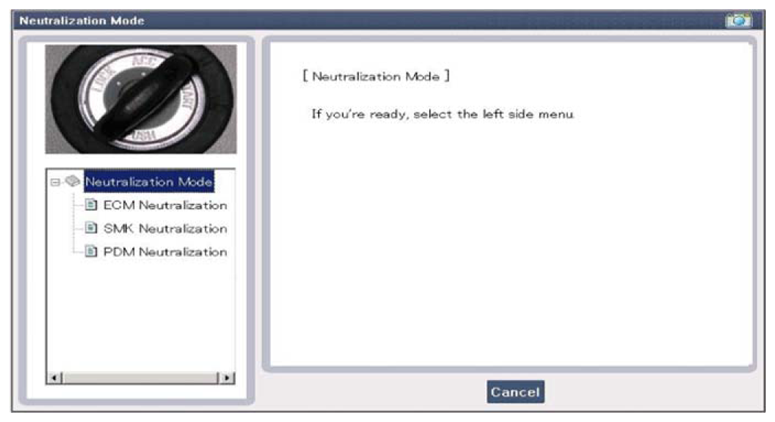

Fig 2: Screen Display - Neutralization Mode
Courtesy of HYUNDAI MOTOR CO.

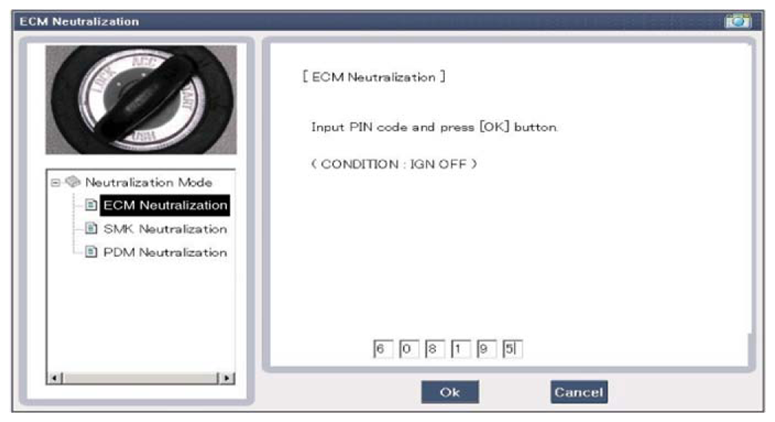

Fig 3: Screen Display - ECM Neutralization
Courtesy of HYUNDAI MOTOR CO.

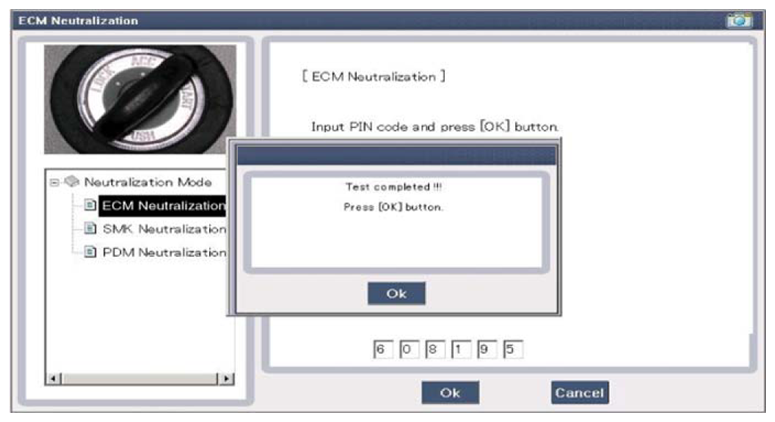

Fig 4: Screen Display - ECM Neutralization (Test Completed)
Courtesy of HYUNDAI MOTOR CO.

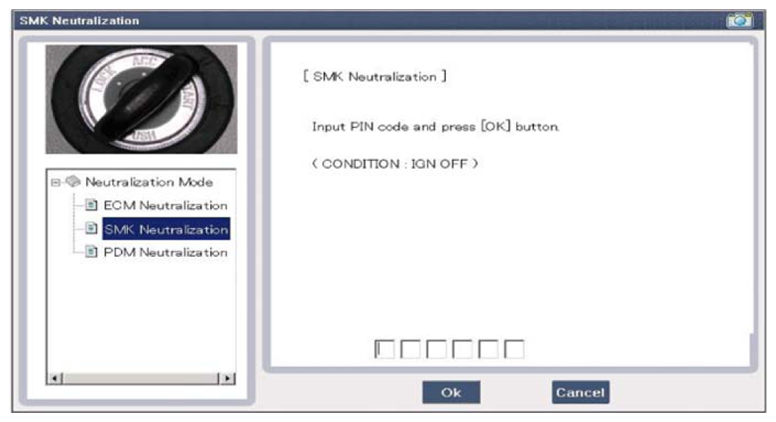

Fig 5: Screen Display - SMK Neutralization
Courtesy of HYUNDAI MOTOR CO.

Fig 6: Screen Display - SMK Neutralization
Courtesy of HYUNDAI MOTOR CO.

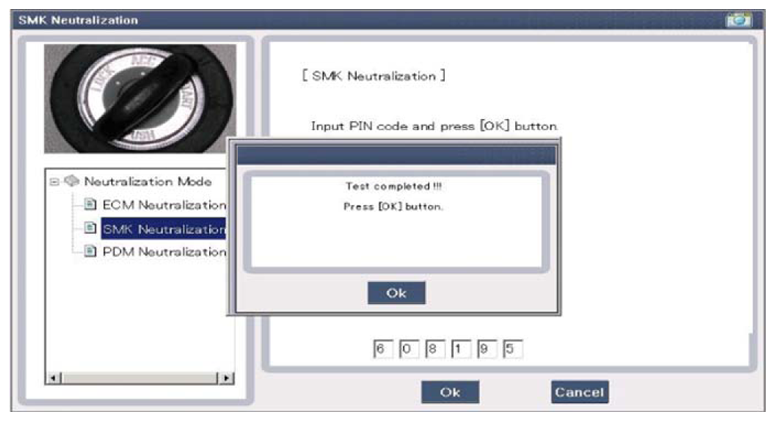

Fig 7: Screen Display - SMK Neutralization (Test Completed)
Courtesy of HYUNDAI MOTOR CO.

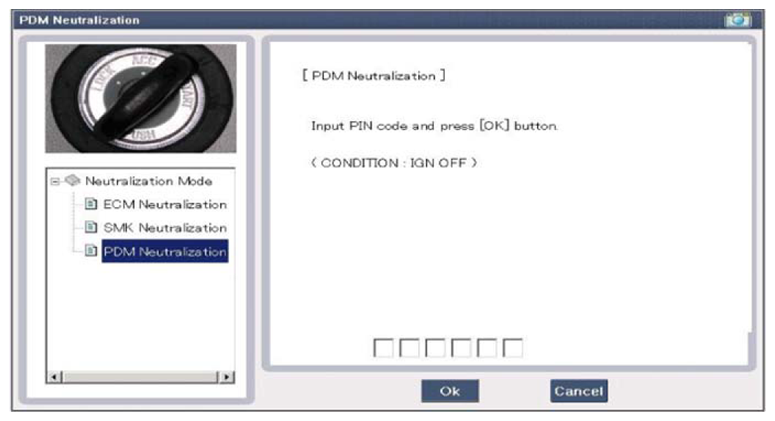

Fig 8: Screen Display - PDM Neutralization
Courtesy of HYUNDAI MOTOR CO.

Fig 9: Screen Display - PDM Neutralization
Courtesy of HYUNDAI MOTOR CO.

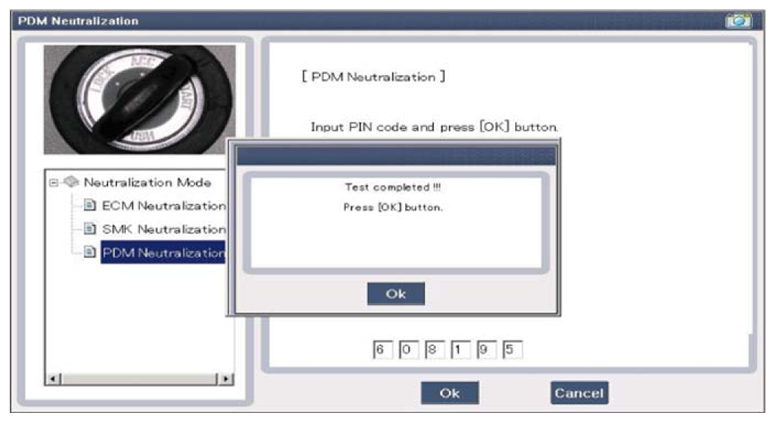

Fig 10: Screen Display - PMK Neutralization (Test Completed)
Courtesy of HYUNDAI MOTOR CO.

ITEM UNIT CHART

ITEM CONDITION CHART

No.	Item name	Condition
1	Immo. indicator Lamp	Ignition switch ON Engine off
2	External Buzzer	Ignition switch ON Engine off
3	Interior Antenna 1 Active	Ignition switch ON Engine off
4	Interior Antenna 2 Active	Ignition switch ON Engine off
5	Trunk Antenna Active	Ignition switch ON Engine off
6	Bumper Antenna Active	Ignition switch ON Engine off
7	DRV DR Antenna Active	Ignition switch ON Engine off
8	AST DR Antenna Active	Ignition switch ON Engine off
