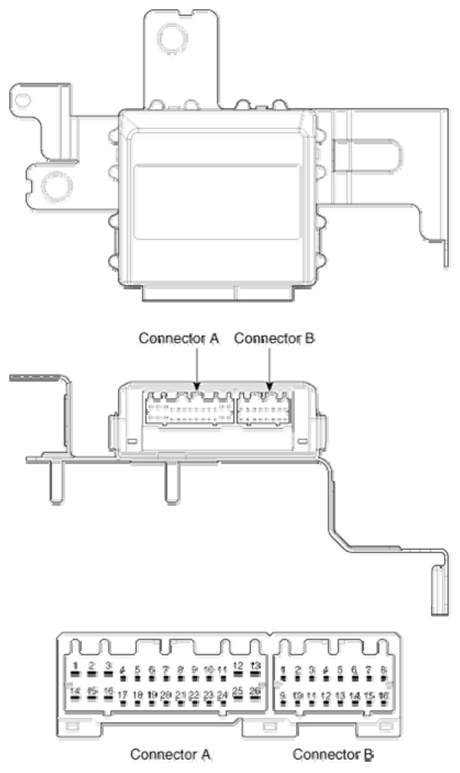

CONNECTOR TERMINALS REFERENCE CHART
| Pin | Connector A | Pin | Connector B |
|---|---|---|---|
| 1 | Battery | 1 | Interior 2 antenna 2 |
| 2 | Immobilizer Indicator | 2 | Interior 1 antenna 2 |
| 3 | GND 1 | 3 | - |
| 4 | - | 4 | - |
| 5 | Trunk lid | 5 | Trunk antenna 1 |
| 6 | Front left door lock/unlock | 6 | Bumper antenna 1 |
| 7 | External buzzer | 7 | Front right side antenna 1 |
| 8 | - | 8 | Front left side antenna 1 |
| 9 | ACC | 9 | Interior 2 antenna 1 |
| 10 | CAN high | 10 | Interior 1 antenna 1 |
| 11 | CAN low | 11 | - |
| 12 | - | 12 | - |
| 13 | RF Communication | 13 | Trunk antenna 2 |
| 14 | IGN 1 | 14 | Bumper antenna 2 |
| 15 | P position | 15 | Front right side antenna 2 |
| 16 | GND 2 | 16 | Front left side antenna 2 |
| 17 | - | ||
| 18 | - | ||
| 19 | - | ||
| 20 | Front right door lock/unlock | ||
| 21 | - | ||
| 22 | Diagnosis | ||
| 23 | SSB switch | ||
| 24 | Brake | ||
| 25 | - | ||
| 26 | - |
