Component (2)

WARNING: This page is about a different variant/trim than selected.

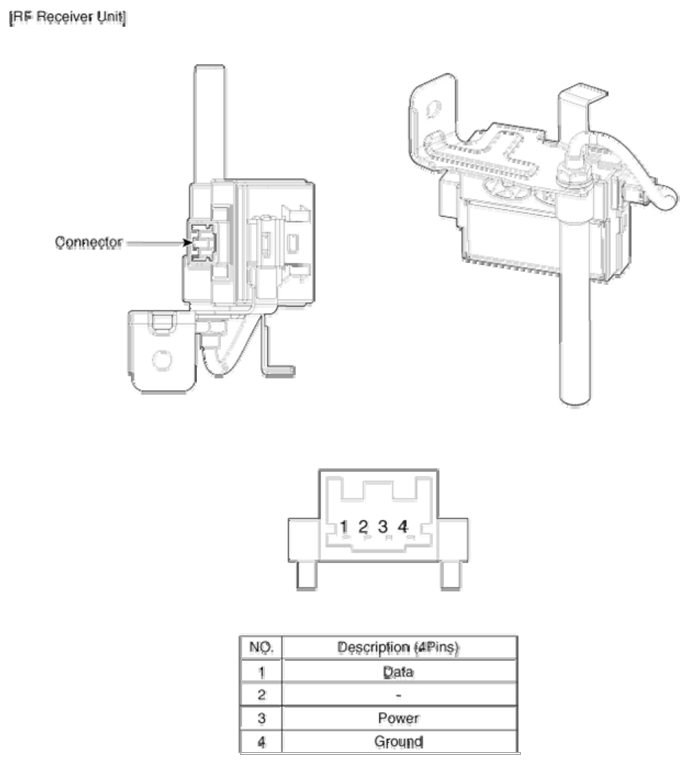

Fig 1: Identifying RF Receiver Unit Connector Terminals
G07318903Courtesy of HYUNDAI MOTOR CO.
