Trunk Lid Open Switch

WARNING: This page is about a different variant/trim than selected.

Check for continuity between the Trunk lid open switch terminals.

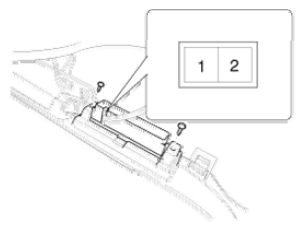

Fig 1: Identifying Trunk Lid Open Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
If continuity is not specified, inspect the switch

Fig 2: Trunk Lid Open Switch Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
