RF Receiver
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Take care not to scratch the crash pad and related parts
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to the "CRASH PAD ")

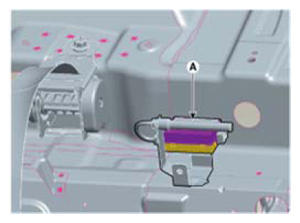

- Remove the RF receiver (A) after loosening the mounting nuts (2EA) and disconnecting the connector.
