Components And Components Location: Components

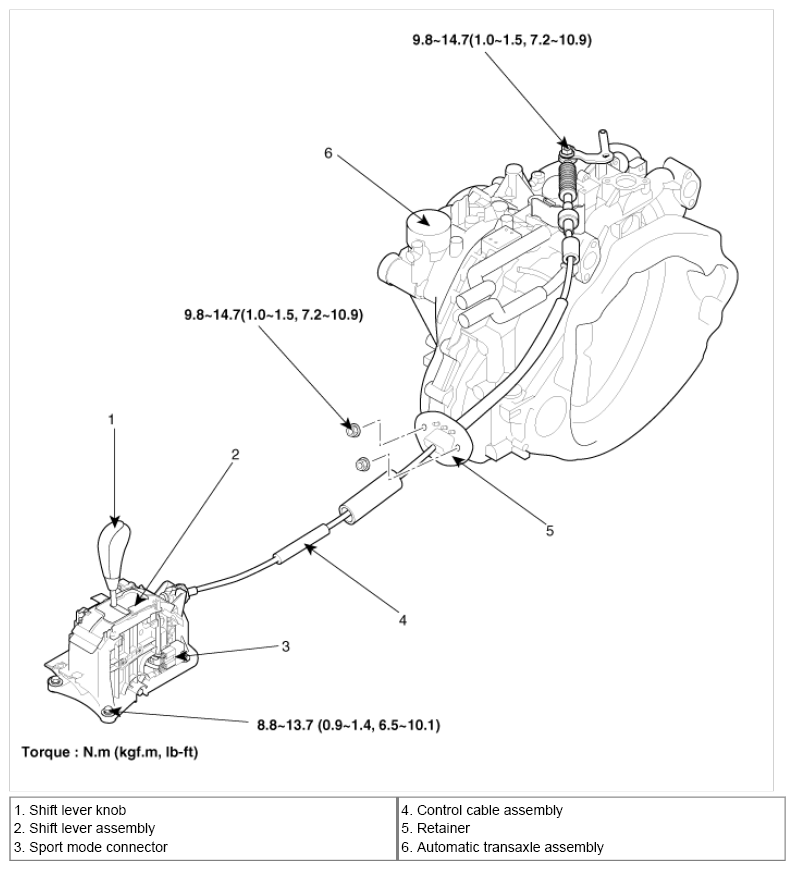

Fig 1: Shift Lever Replacement Components With Torque Specifications
G07358821Courtesy of HYUNDAI MOTOR CO.
