Components And Components Location: Components

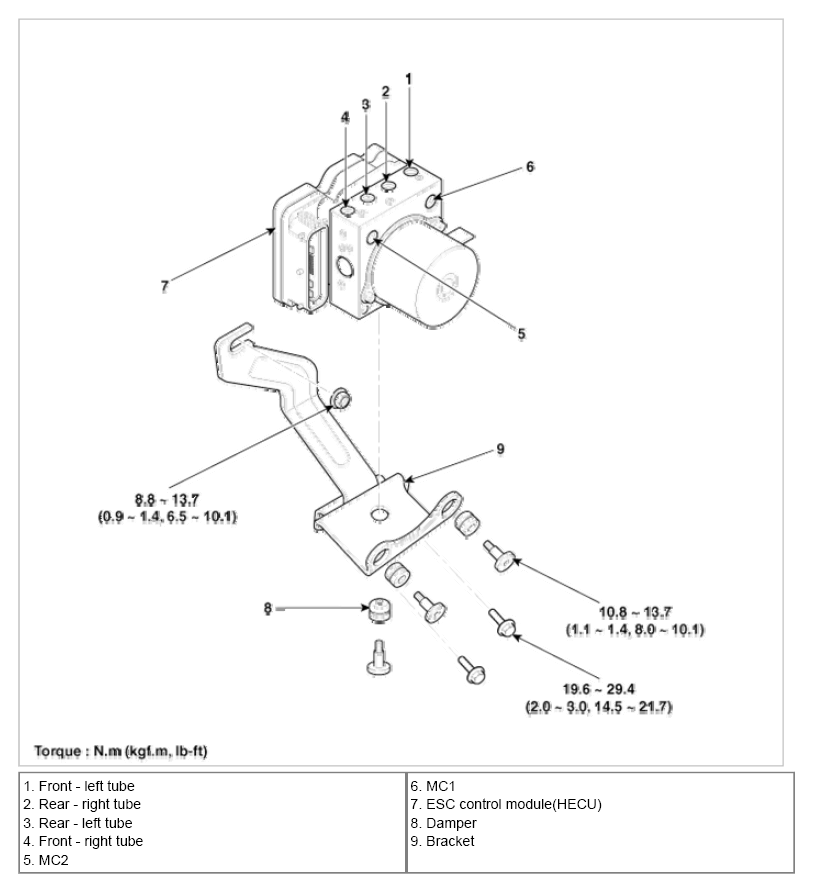

Fig 1: Exploded View Of ESC Control Module With Torque Specifications
G07318410Courtesy of HYUNDAI MOTOR CO.
