Intake Air Temperature Sensor (IATS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

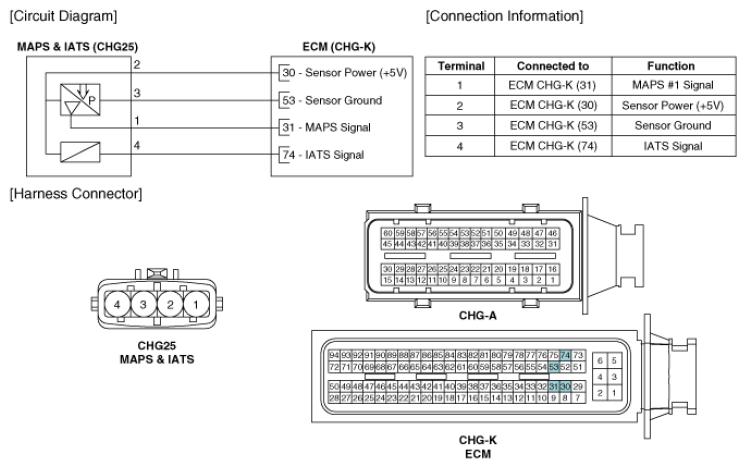

Fig 1: Identifying Intake Air Temperature Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
