NVLD (Natural Vacuum Leakage Detection): Troubleshooting: Waveform

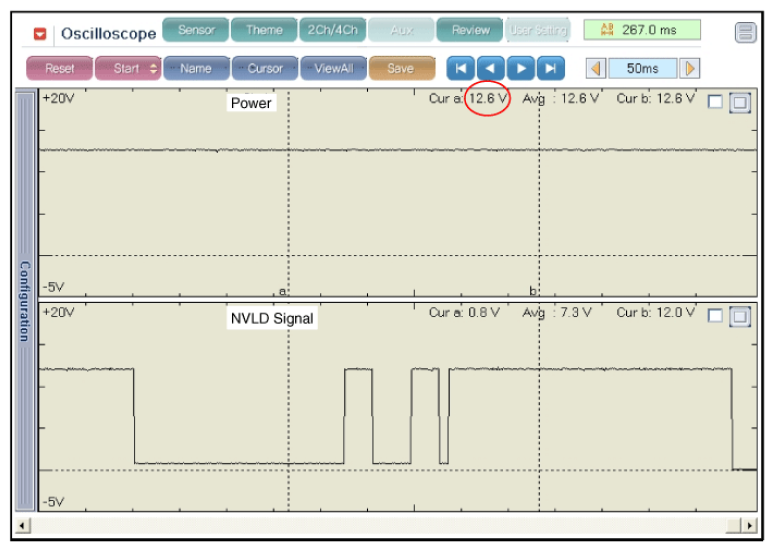

Fig 1: Display NVLD (Natural Vacuum Leakage Detection) Module
G07744159Courtesy of HYUNDAI MOTOR CO.
