Spark Test

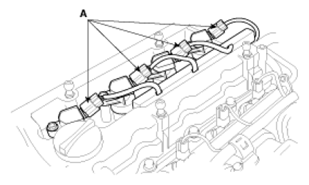

Disconnect the ignition coil connectors (A).

Fig 1: Identifying Ignition Coil Connectors
Courtesy of HYUNDAI MOTOR CO.

NOTE: When disconnecting the ignition coil connector, pull out the locking pin (A) and then pull out the connector while pressing the clip (B).

Fig 2: Pulling Locking Pin And Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the ignition coils (A).

Fig 3: Identifying Ignition Coils
Courtesy of HYUNDAI MOTOR CO.
Disconnect the injector connectors (A).

Fig 4: Identifying Injector Connectors
Courtesy of HYUNDAI MOTOR CO.
Using a spark plug socket, remove the spark plug.
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

Fig 5: Removing Spark Plug Using Spark Plug Socket
Courtesy of HYUNDAI MOTOR CO.
Check if spark occurs while engine is being cranked.
NOTE: To prevent fuel being injected from injectors while the engine is being cranked, disconnect the injector connector. Crank the engine for no more than 5 ~ 10 seconds.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plug.
Reconnect the injector connectors.
Install the ignition coils.
Tightening torque:

3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3lb-ft)
Reconnect the ignition coil connectors.

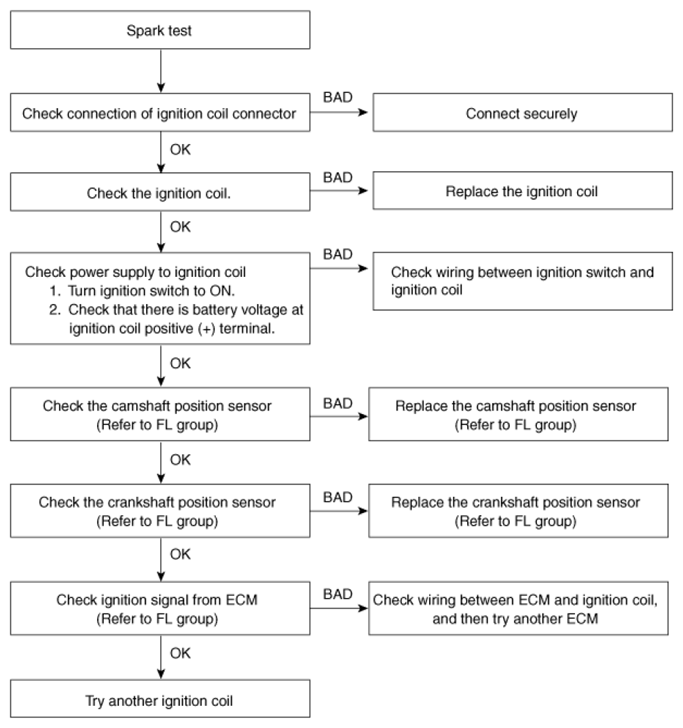

Fig 6: Ignition Coil Connectors Connecting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
