Signal Waveform

Fig 1: Screen Display - Output Speed Sensor Signal Waveform
G07317890Courtesy of HYUNDAI MOTOR CO.

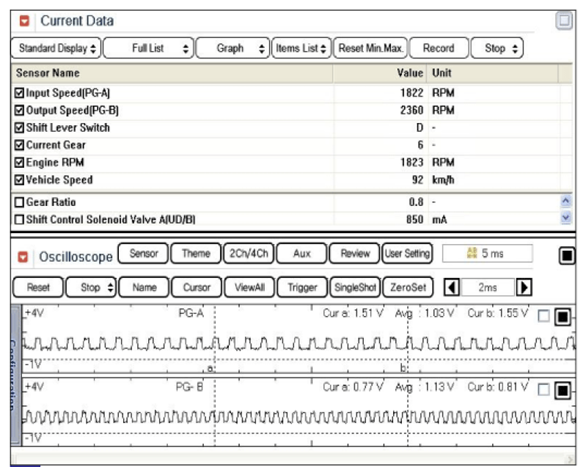

Fig 2: Screen Display - Output Speed Sensor Current Data
G07317891Courtesy of HYUNDAI MOTOR CO.
