Circuit Diagram - Revised

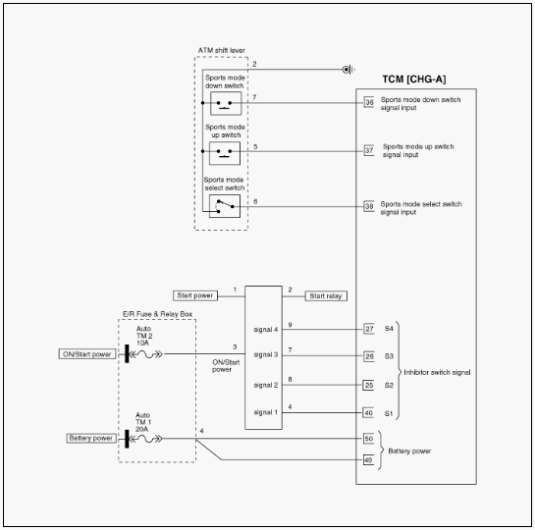

Fig 1: Automatic Transaxle Control System Circuit Diagram (1 Of 2)
G00535016Courtesy of HYUNDAI MOTOR CO.

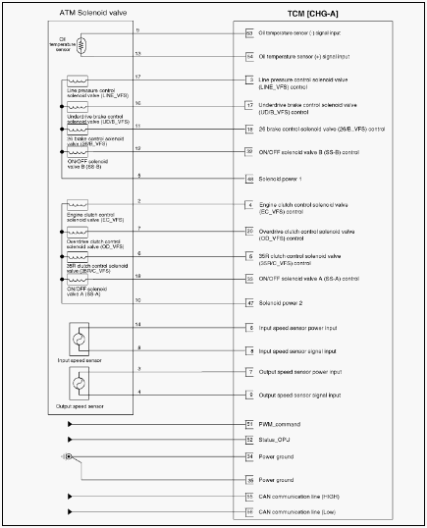

Fig 2: Automatic Transaxle Control System Circuit Diagram (2 Of 2)
G00535017Courtesy of HYUNDAI MOTOR CO.
