Circuit Diagram

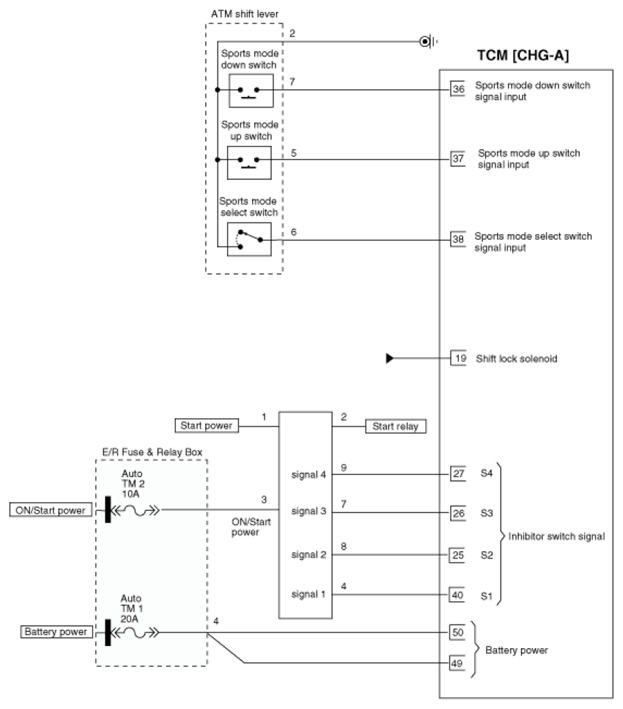

Fig 1: Automatic Transaxle Control System Circuit Diagram (1 Of 2)
G07317866Courtesy of HYUNDAI MOTOR CO.

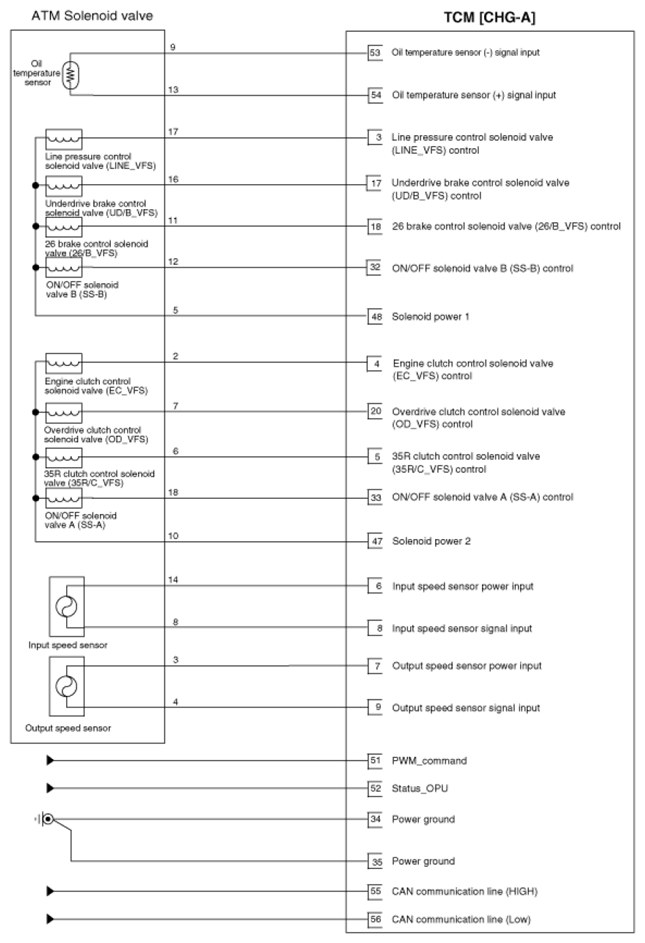

Fig 2: Automatic Transaxle Control System Circuit Diagram (2 Of 2)
G07317867Courtesy of HYUNDAI MOTOR CO.
