Home › Hyundai › 2012 › Tucson GL, Automatic Trans › Repair and Diagnosis › Accessories & Equipment › Cruise Control Systems › Schematic Diagrams › System Block Diagram › Notes

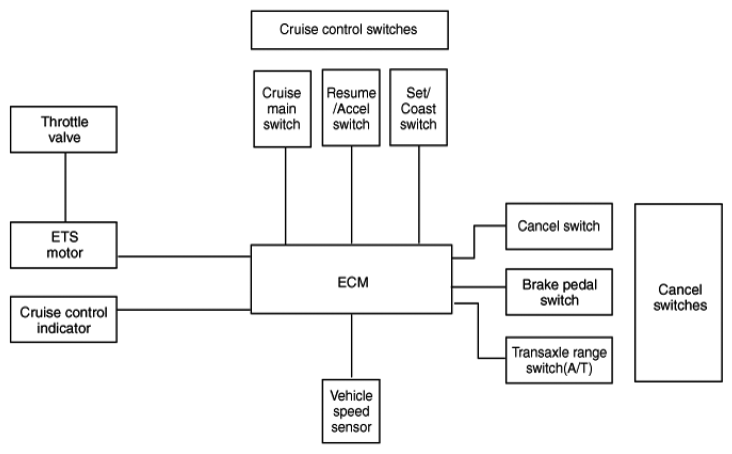

System Block Diagram: Notes

G06874321Courtesy of HYUNDAI MOTOR CO.
