Components and Components Location: Components

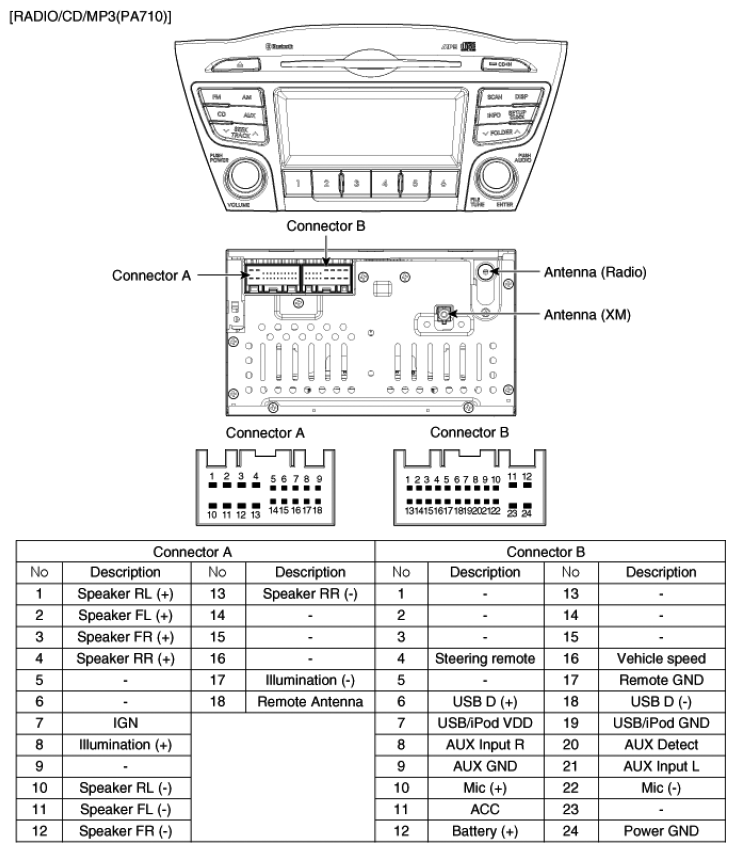

Fig 1: Identifying Audio Unit Components - RADIO/CD/MP3(PA710)

Courtesy of HYUNDAI MOTOR CO.

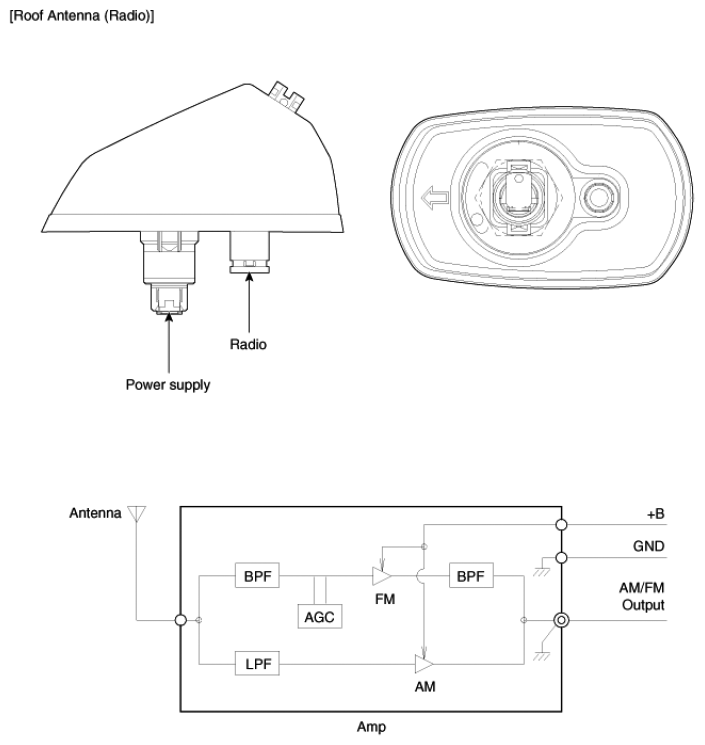

Fig 2: Identifying Audio Unit Components - Roof Antenna (Radio)

Courtesy of HYUNDAI MOTOR CO.

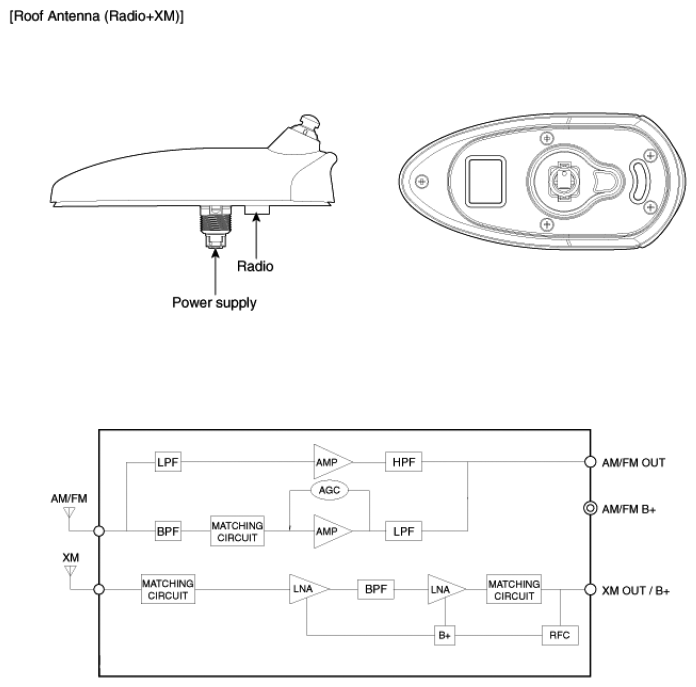

Fig 3: Identifying Audio Unit Components - Roof Antenna (Radio+XM)

Courtesy of HYUNDAI MOTOR CO.
