Interior A

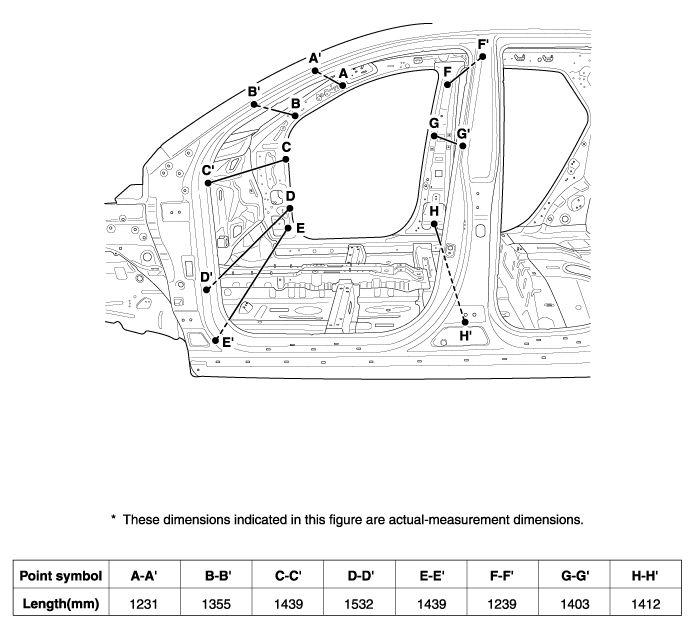

Fig 1: Identifying Measurement Points - Interior A (1 Of 2)
G06874602Courtesy of HYUNDAI MOTOR CO.

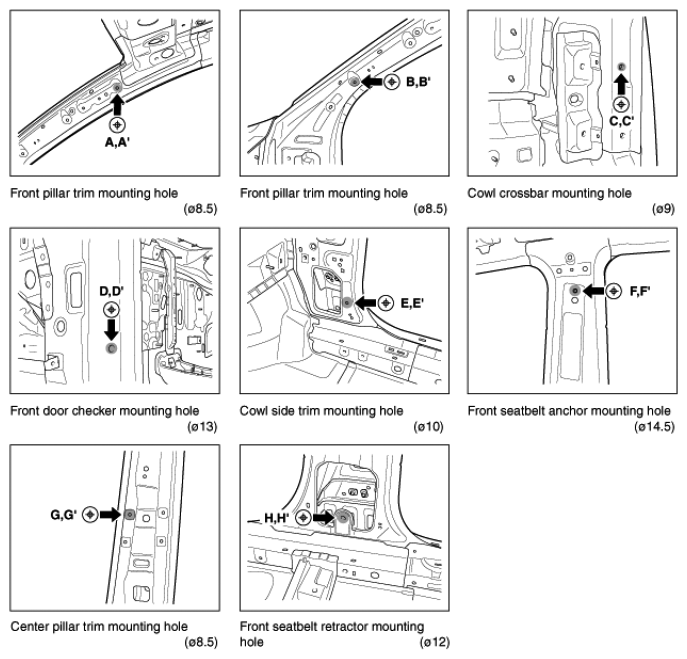

Fig 2: Identifying Measurement Points - Interior A (2 Of 2)
G06874603Courtesy of HYUNDAI MOTOR CO.
