Interior B

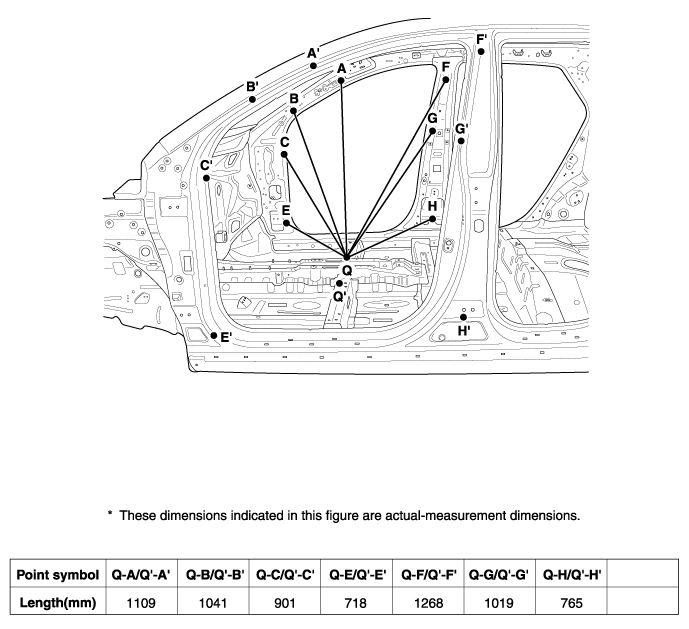

Fig 1: Identifying Measurement Points - Interior B (1 Of 2)
G06874604Courtesy of HYUNDAI MOTOR CO.

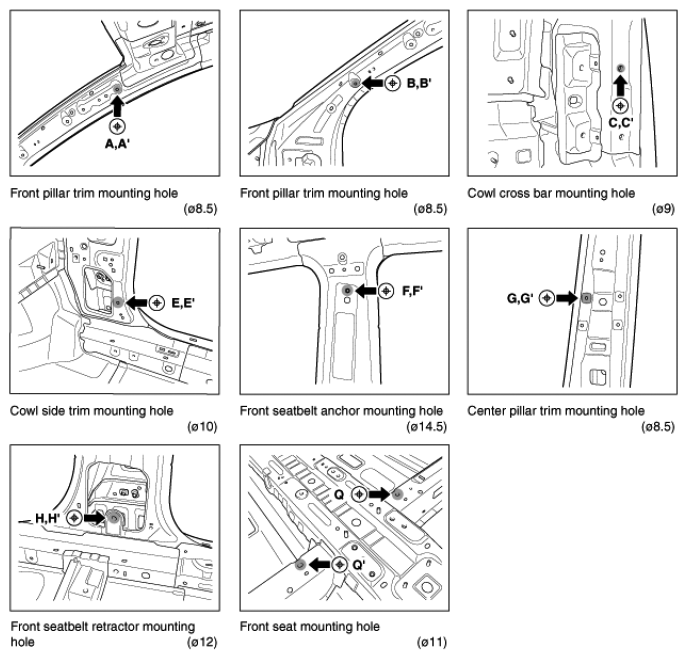

Fig 2: Identifying Measurement Points - Interior B (2 Of 2)
G06874605Courtesy of HYUNDAI MOTOR CO.
