Interior C

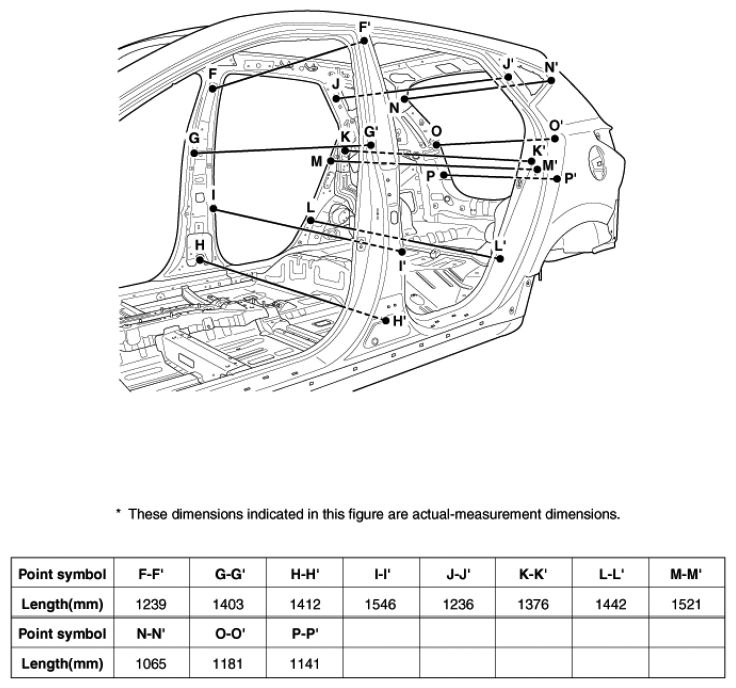

Fig 1: Identifying Measurement Points - Interior C (1 Of 2)
G06874606Courtesy of HYUNDAI MOTOR CO.

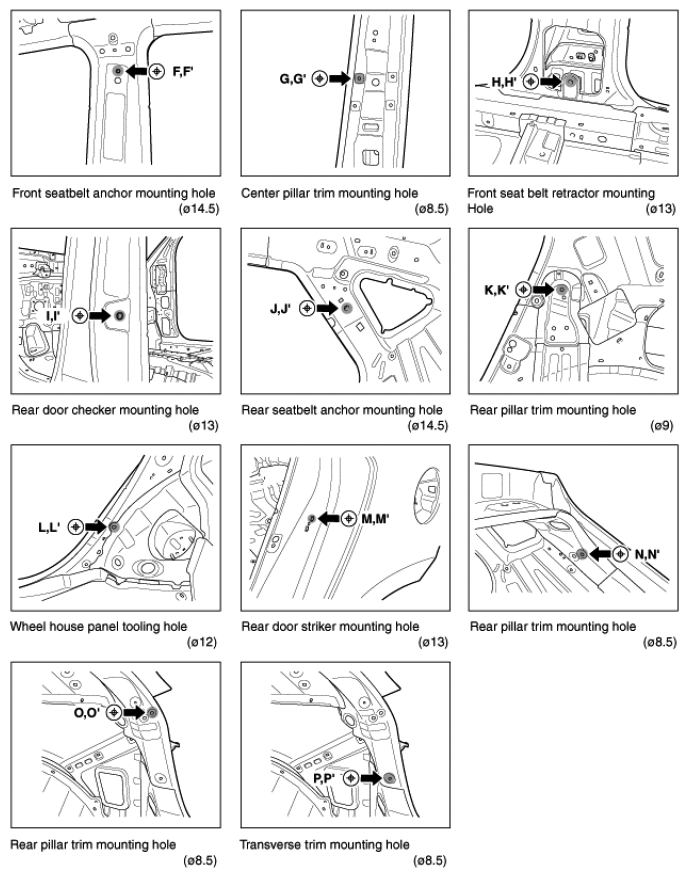

Fig 2: Identifying Measurement Points - Interior C (2 Of 2)
G06874607Courtesy of HYUNDAI MOTOR CO.
