Interior D

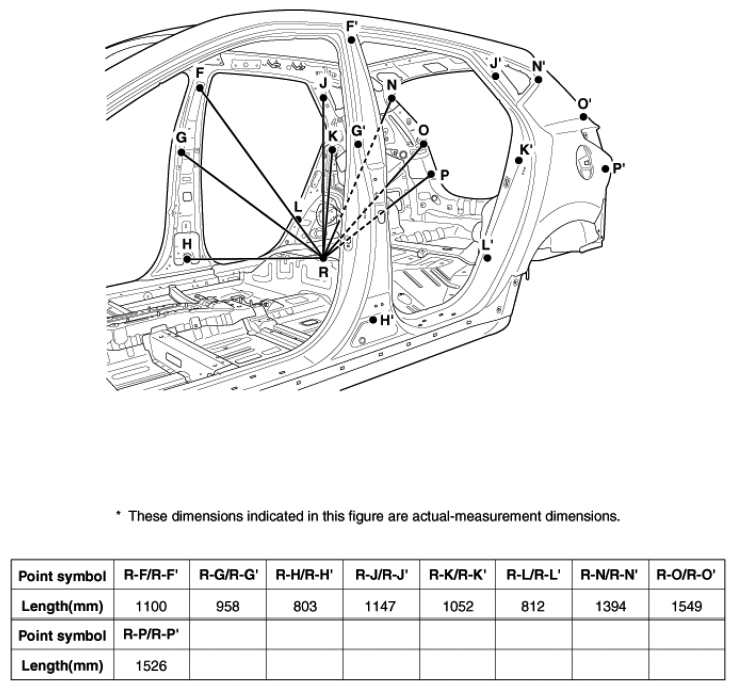

Fig 1: Identifying Measurement Points - Interior D (1 Of 2)
G06874608Courtesy of HYUNDAI MOTOR CO.

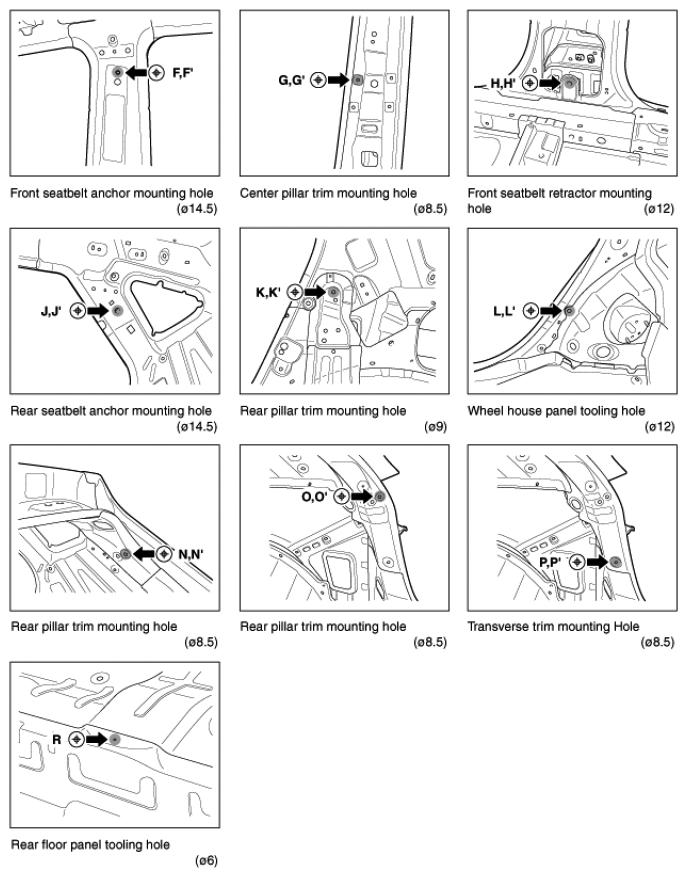

Fig 2: Identifying Measurement Points - Interior D (2 Of 2)
G06874609Courtesy of HYUNDAI MOTOR CO.
