Body Dimensions
›
Rear Body
›
Body Repair
Body Repair

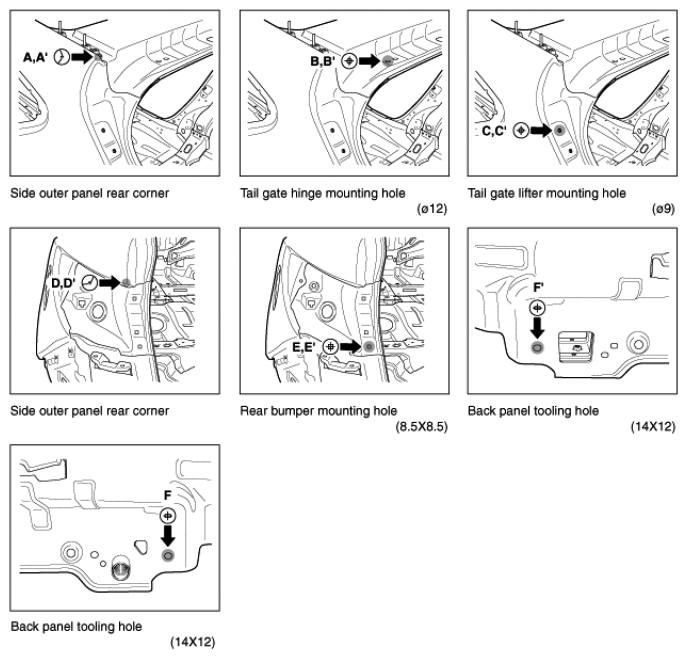

Fig 1: Identifying Measurement Points - Rear Body (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

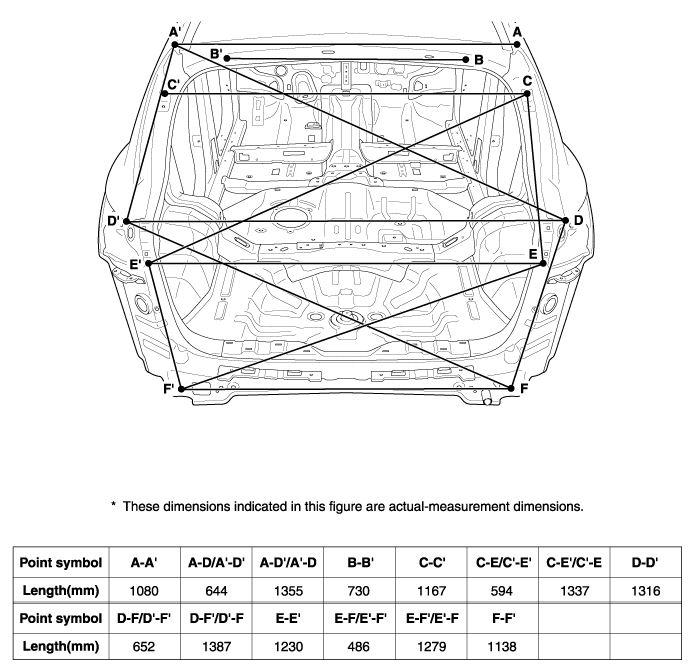

Fig 2: Identifying Measurement Points - Rear Body (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
