Repair Procedures: Inspection

  1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
    Fig 1: Identifying Power Seat Control Switch Terminals
    G06874783Courtesy of HYUNDAI MOTOR CO.

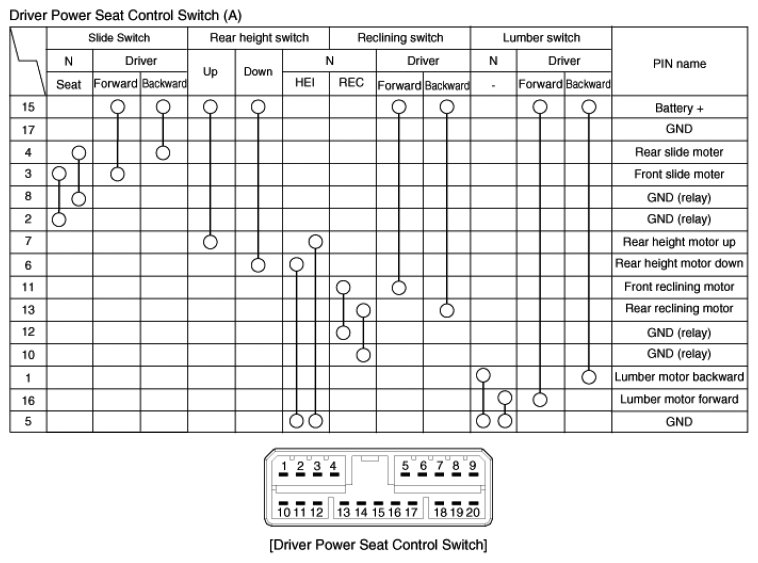

    Fig 2: Driver Power Seat Control Switch Continuity Chart
    G06874784Courtesy of HYUNDAI MOTOR CO.
