Lower Panel Replacement

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR CO.
After loosening the crash pad lower panel mounting screws, then remove the crash pad lower panel (A).
Disconnect the diagnosis connector (B).

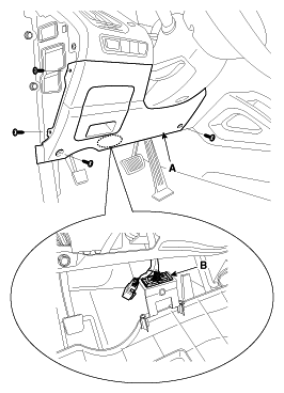

Fig 2: Identifying Crash Pad Lower Panel And Diagnosis Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting bolts, then remove the reinforce panel (A).

Fig 3: Identifying Reinforce Panel
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse the removal.
