Passenger Power Window Switch

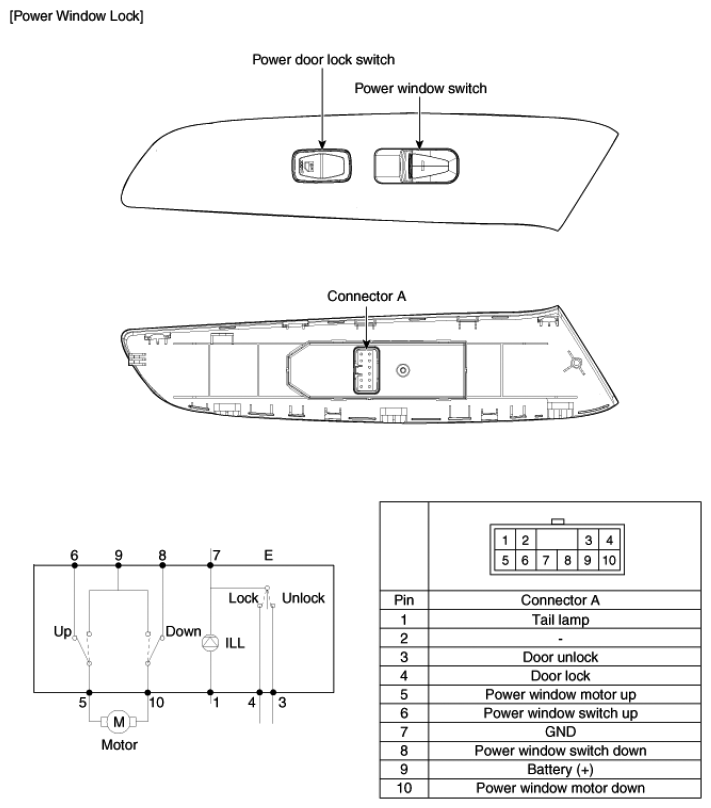

Fig 1: Identifying Passenger Power Window And Door Lock Switch With Connector Reference Chart
G06874825Courtesy of HYUNDAI MOTOR CO.

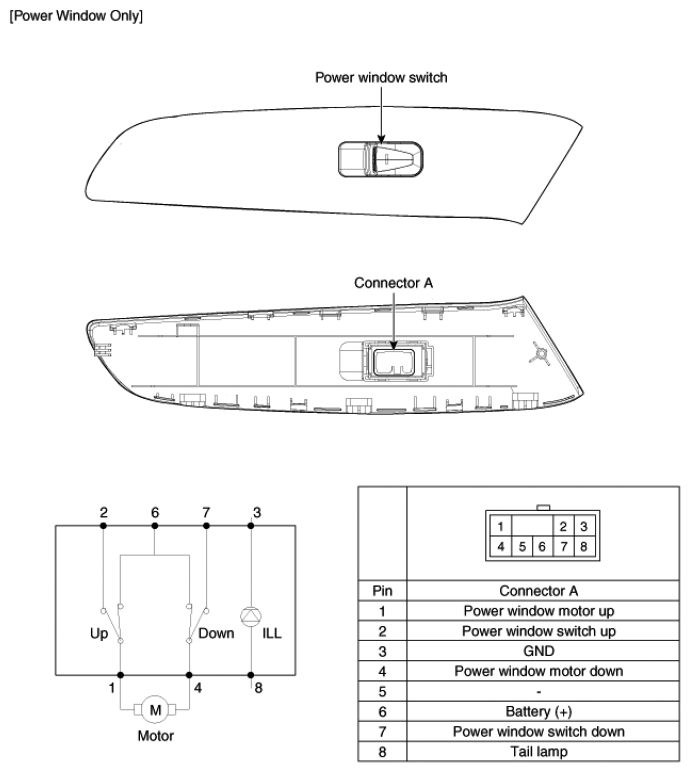

Fig 2: Identifying Power Window Switch With Connector Terminals Reference Chart
G06874826Courtesy of HYUNDAI MOTOR CO.
