FixVault
Home
›
Hyundai
›
2012
›
Tucson GL, Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Windows
›
Power Window Switch
›
Components and Components Location
›
Components
›
Rear Power Window Switch
Rear Power Window Switch

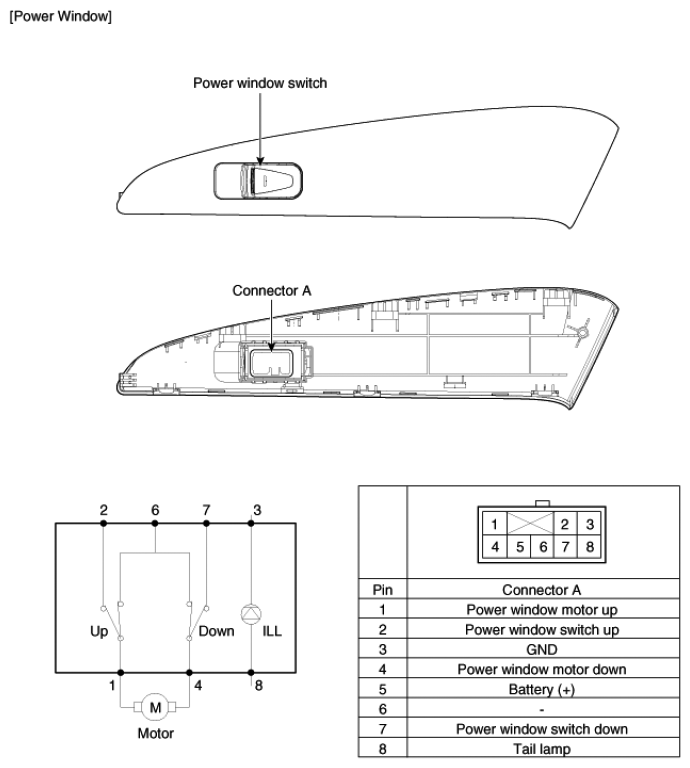

Fig 1: Identifying Rear Power Window Switch With Connector Terminal Reference Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
