Components and Components Location: Component: Notes

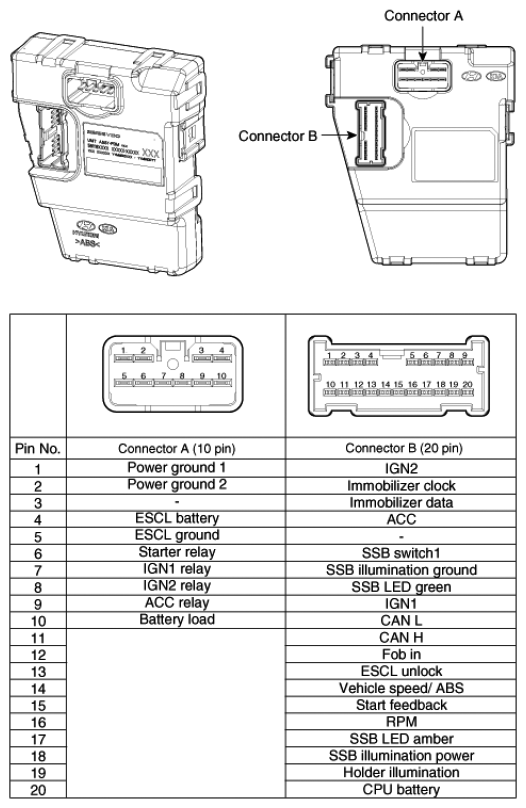

Fig 1: Identifying Power Distribution Module With Connector Terminals Description Chart
G06873849Courtesy of HYUNDAI MOTOR CO.
