System Circuit Diagram

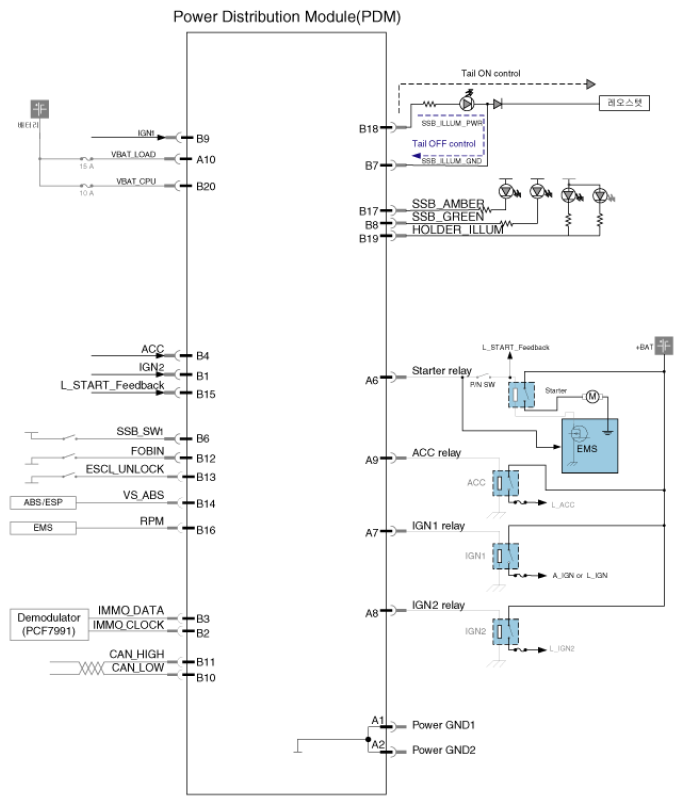

Fig 1: Power Distribution Module System Circuit Diagram
G06873851Courtesy of HYUNDAI MOTOR CO.
