Components And Components Location: Components

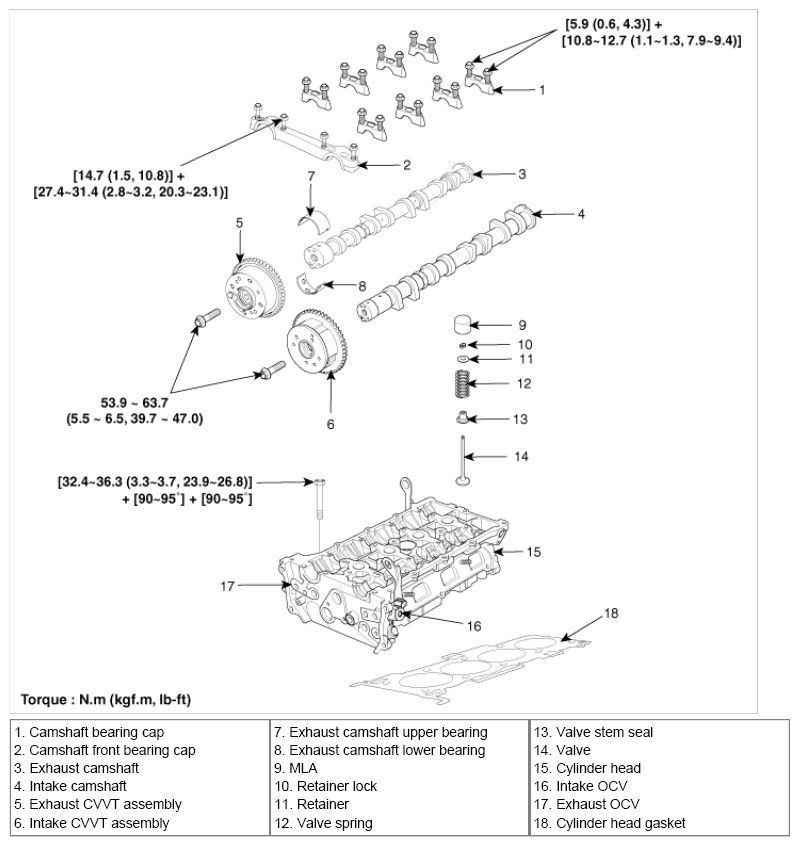

Fig 1: Cylinder Head Replacement Components With Torque Specifications

G06874176

Courtesy of HYUNDAI MOTOR CO.
