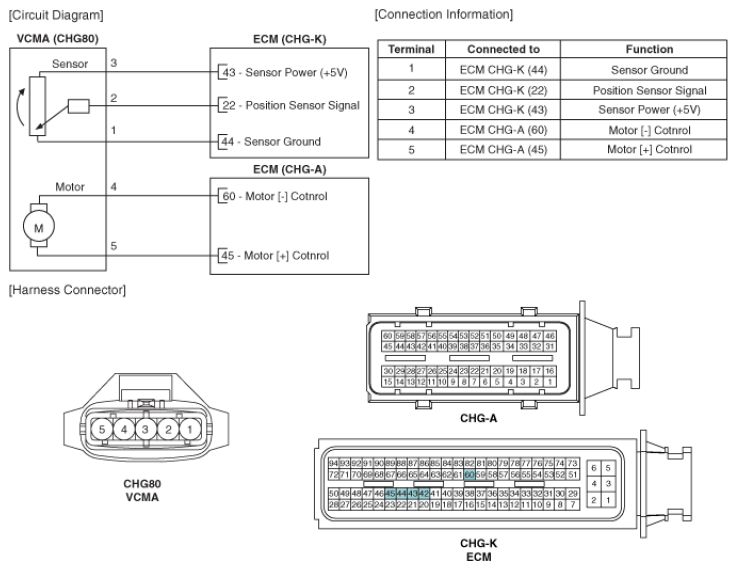

Home › Hyundai › 2012 › Tucson GL, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Variable Charge Motion Actuator (VCMA) › Schematic Diagrams › Circuit Diagram
