Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

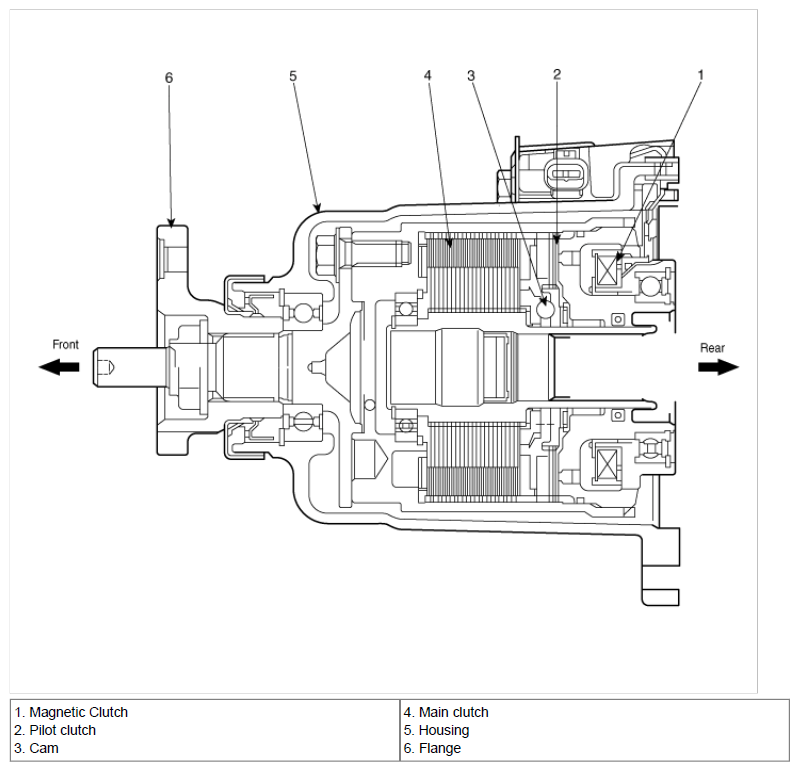

Fig 1: Identifying Magnetic Clutch, Pilot Clutch, Cam, Main Clutch, Housing And Flange

Courtesy of HYUNDAI MOTOR CO.
