Pressure Sensor Inspection Procedure
Pressure Sensor Inspection Procedure
WARNING:
This page is about a different variant/trim than selected.

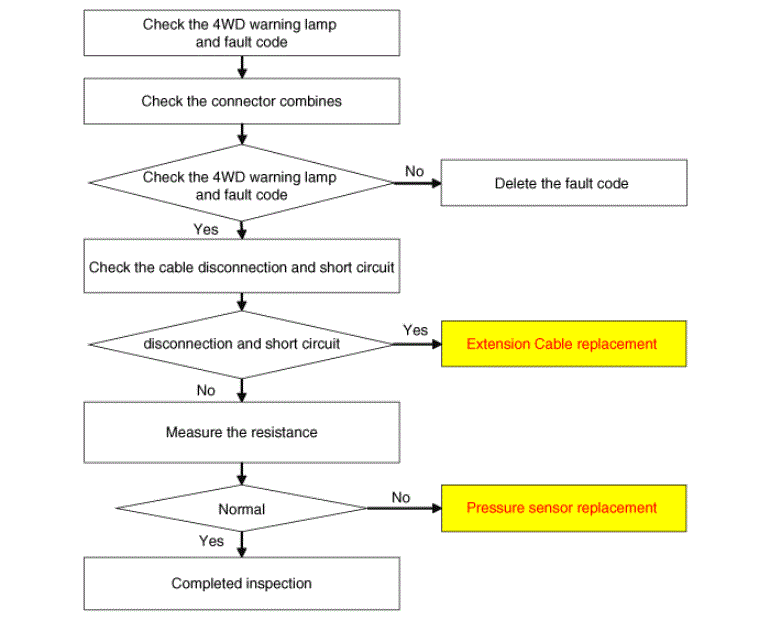

Fig 1: Identifying Pressure Sensor Inspection Diagram
Courtesy of KIA MOTORS AMERICA, INC.
