Section 7 (4WD Control Diagnosis)
›
DTC U0122: Lost Communication With Vehicle Dynamics Control Module
›
General Information
›
Signal Waveform
Signal Waveform
WARNING:
This page is about a different variant/trim than selected.

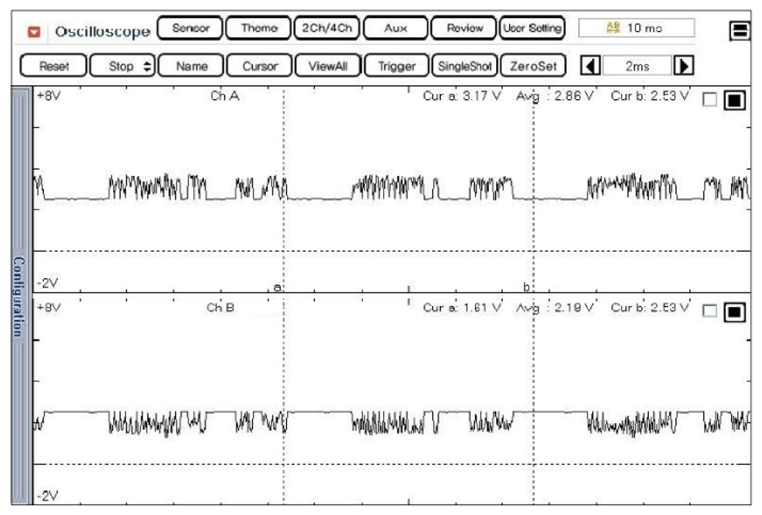

Fig 1: CH A & CH B Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
