Components and Components Location: Components

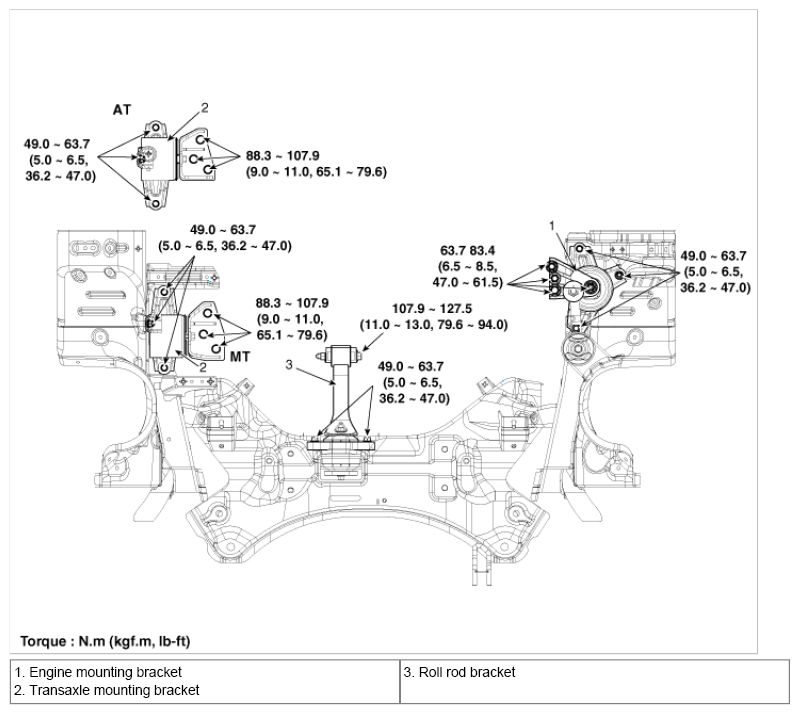

Fig 1: Engine Mounting Replacement Components With Torque Specifications
G06874979Courtesy of HYUNDAI MOTOR CO.
