Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    Fig 1: Identifying Key Warning Switch Connector Terminals
    G06873858Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Identifying Ignition Switch Connector Terminals
    G06873859Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

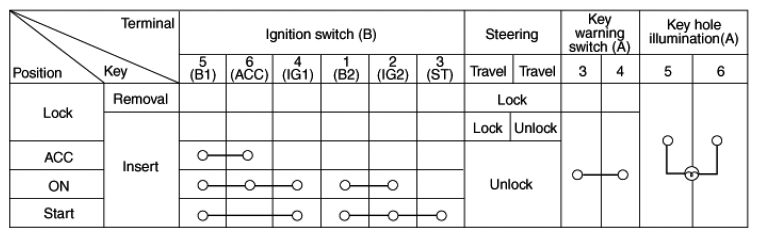

    Fig 3: Ignition/Key Warning Switch Connector Terminals Continuity Chart
    G06873860Courtesy of HYUNDAI MOTOR CO.
