Home › Hyundai › 2012 › Tucson GL, Standard Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Manual Transaxle Control System › Manual Transaxle Shift Control › Components and Components Location (M5GF1) › Components

Components and Components Location (M5GF1): Components

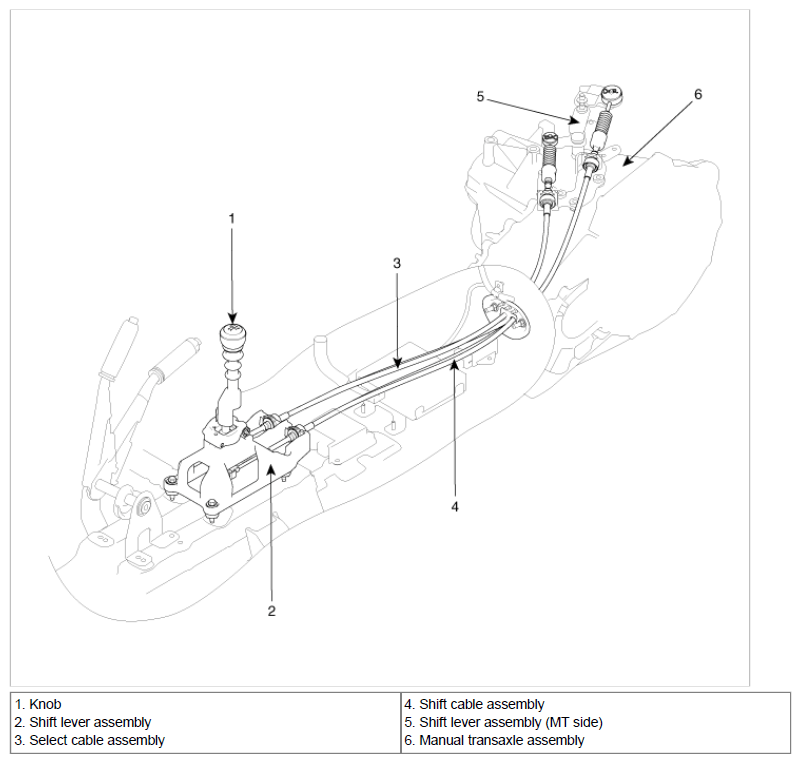

Fig 1: Identifying Manual Transaxle Shift Control Components (M5GF1)
G06875025Courtesy of HYUNDAI MOTOR CO.
