FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

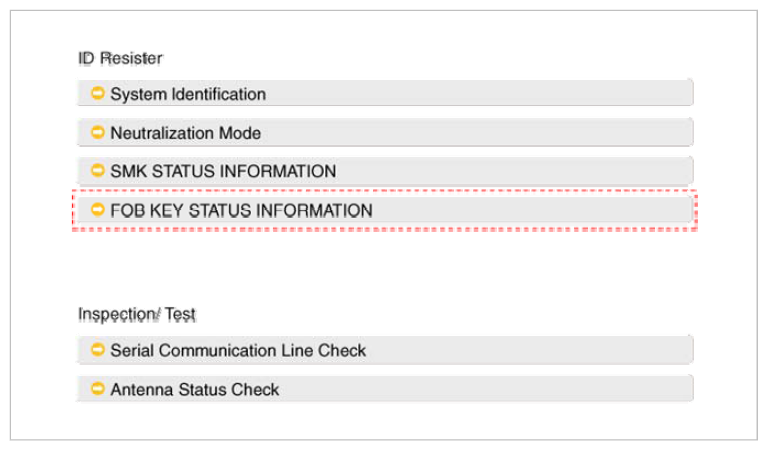

    Fig 1: Display - Fob Key Status Info Selection Screen
    G08811515Courtesy of HYUNDAI MOTOR AMERICA

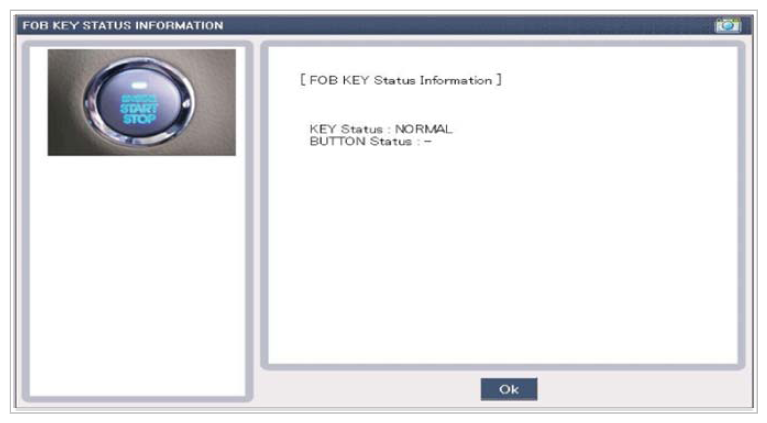

    Fig 2: Display - Fob Key Status Info Screen
    G08811516Courtesy of HYUNDAI MOTOR AMERICA
