Circuit Diagram

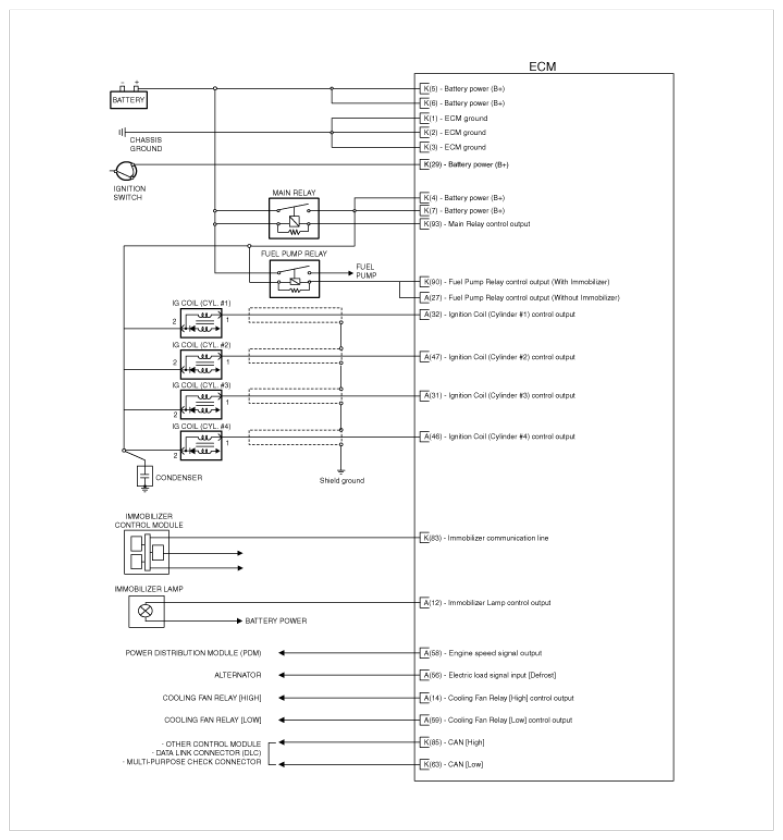

Fig 1: ECM - Circuit Diagram (1 Of 4)
G08807000Courtesy of HYUNDAI MOTOR AMERICA

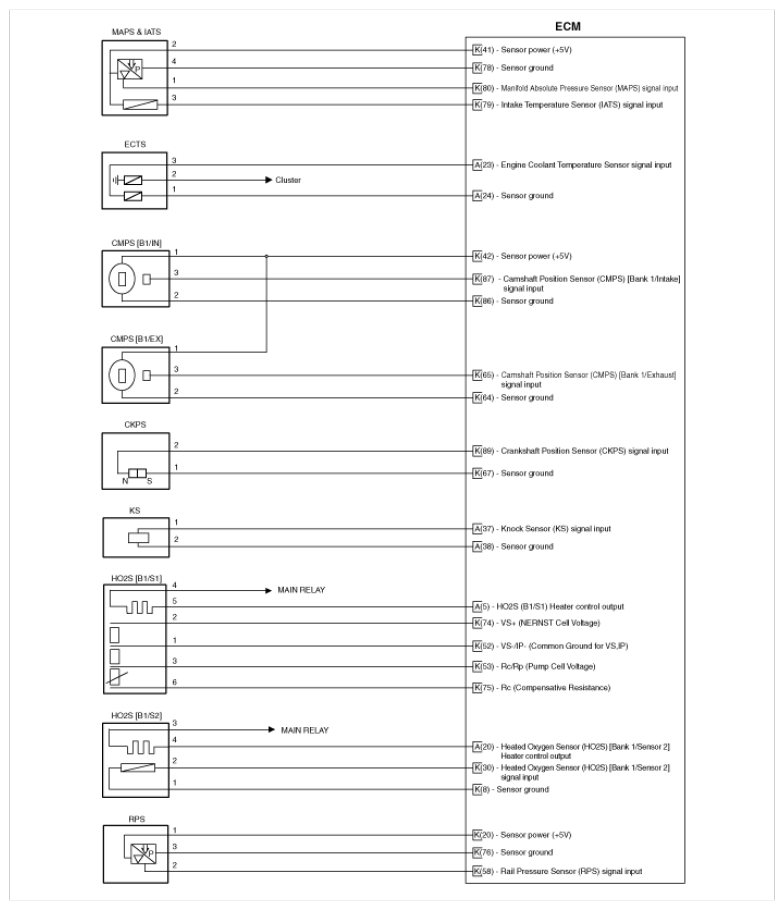

Fig 2: ECM - Circuit Diagram (2 Of 4)
G08807001Courtesy of HYUNDAI MOTOR AMERICA

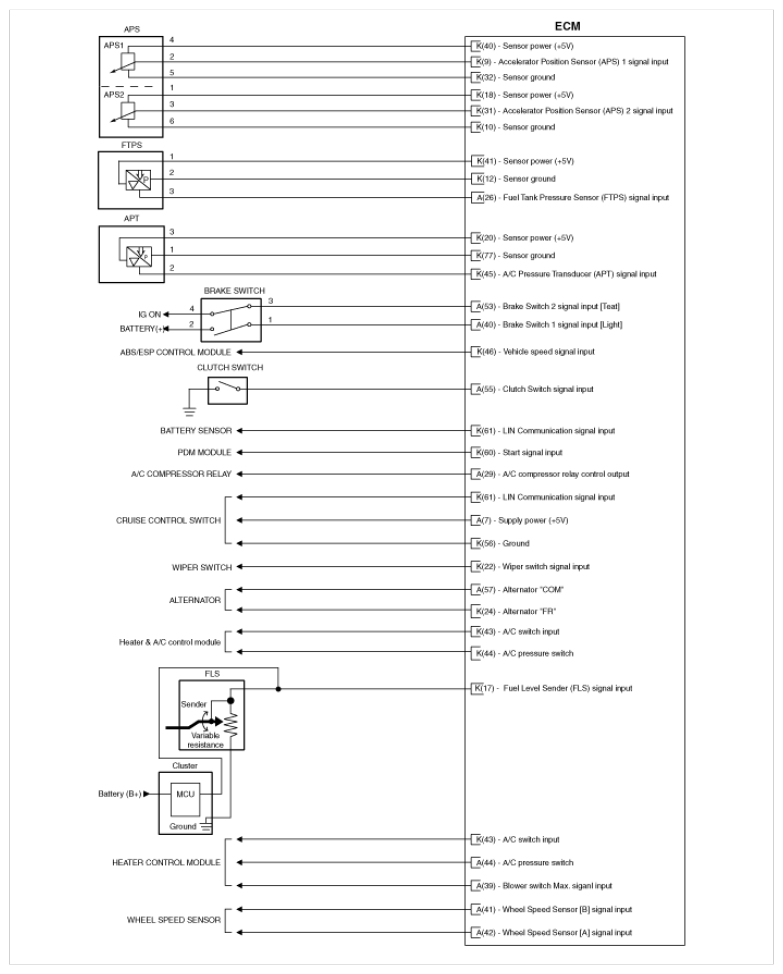

Fig 3: ECM - Circuit Diagram (3 Of 4)
G08807002Courtesy of HYUNDAI MOTOR AMERICA

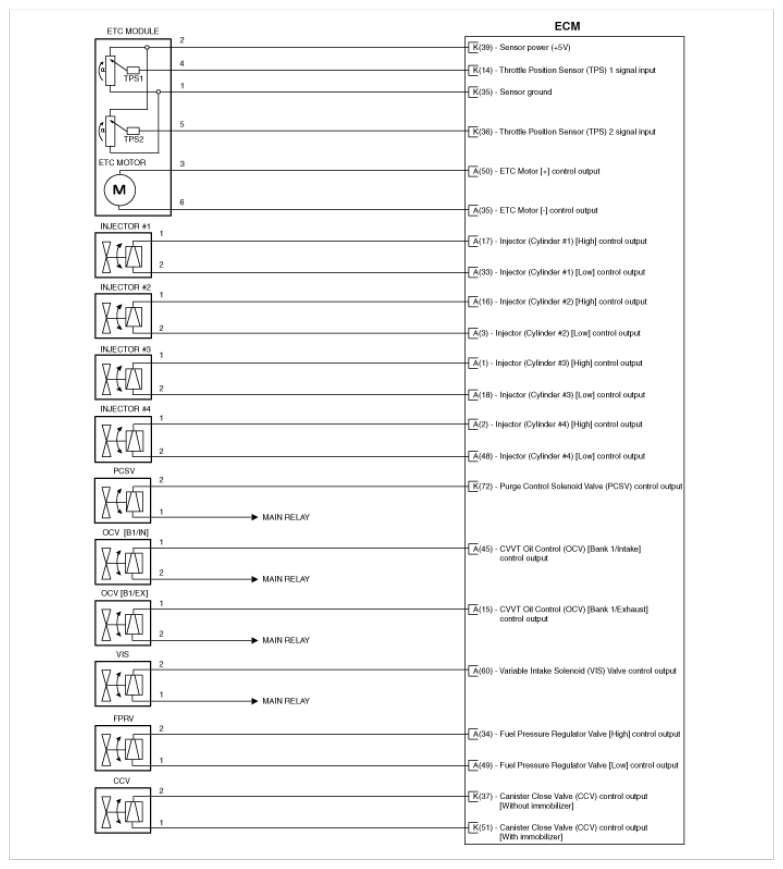

Fig 4: ECM - Circuit Diagram (4 Of 4)
G08807003Courtesy of HYUNDAI MOTOR AMERICA
