Repair Procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pre-tighten the bracket fixing bolt (A) in dash panel.

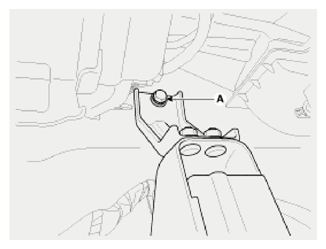

    Fig 1: Identifying Dash Panel Bracket Fixing Bolt
    G09133830Courtesy of HYUNDAI MOTOR AMERICA
  2. Install the brake booster and brake pedal member fixing nuts (A) securely.

    Tightening torque:

    18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

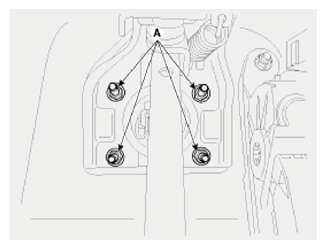

    Fig 2: Identifying Brake Booster And Brake Pedal Member Fixing Nuts
    G09133831Courtesy of HYUNDAI MOTOR AMERICA
  3. Tighten the bolt (A) securely in dash panel.

    Tightening torque:

    18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

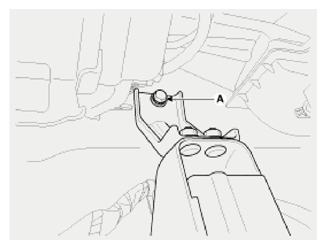

    Fig 3: Identifying Dash Panel Bolt
    G09133832Courtesy of HYUNDAI MOTOR AMERICA
  4. Install the snap pin (A) and clevis pin (B).

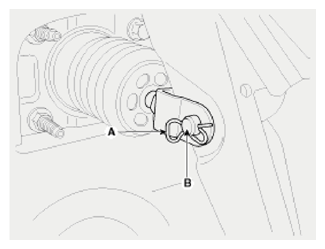

    Fig 4: Identifying Snap Pin And Clevis Pin
    G09133833Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Before installing the pin, apply the grease to the clevis pin.
    • Use a new snap pin whenever installing.
  5. Install the stop lamp switch securely.
  6. Connect the stop lamp switch connector (A).

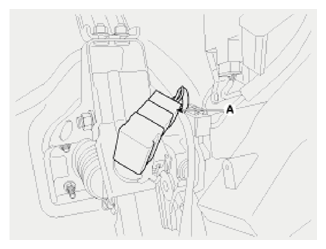

    Fig 5: Identifying Stop Lamp Switch Connector
    G09133834Courtesy of HYUNDAI MOTOR AMERICA
  7. Adjust the brake pedal height and free play.
  8. Check the brake pedal operation after installing the brake pedal.
  9. Install the crash pad lower panel.
  10. Reconnect the negative (-) battery cable.
