IPM (Intelligent integrated Platform Module)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

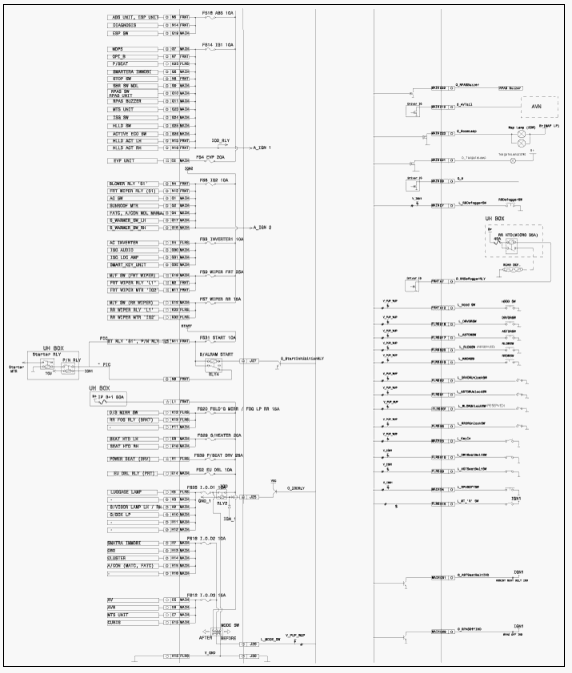

Fig 1: Intelligent Integrated Platform Module - Circuit Diagram (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

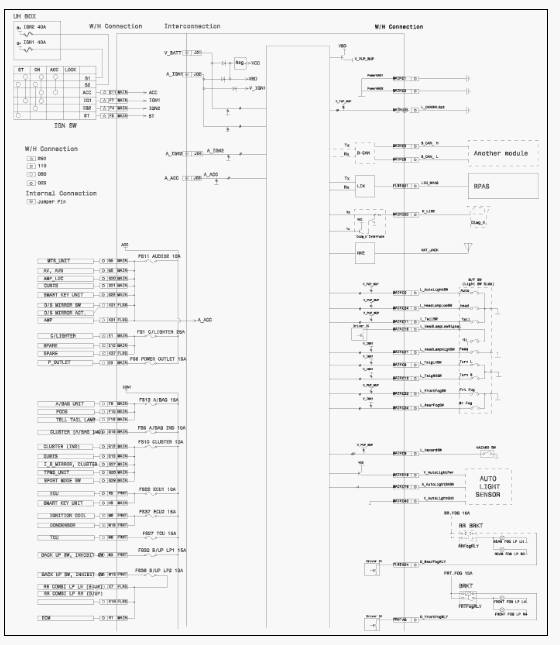

Fig 2: Intelligent Integrated Platform Module - Circuit Diagram (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

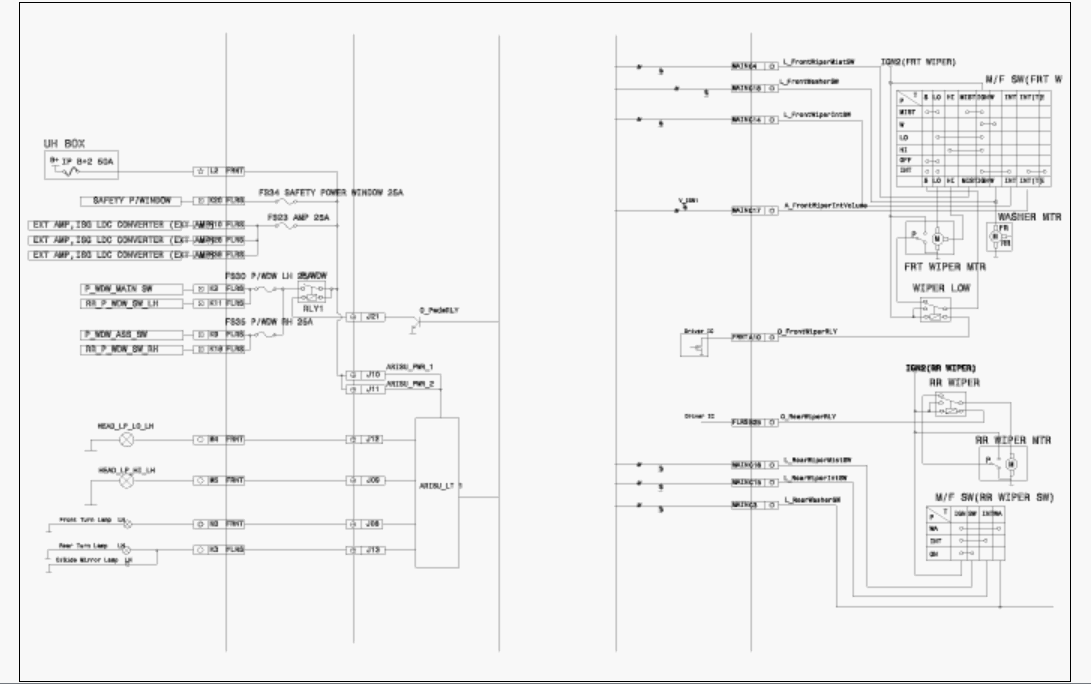

Fig 3: Intelligent Integrated Platform Module - Circuit Diagram (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

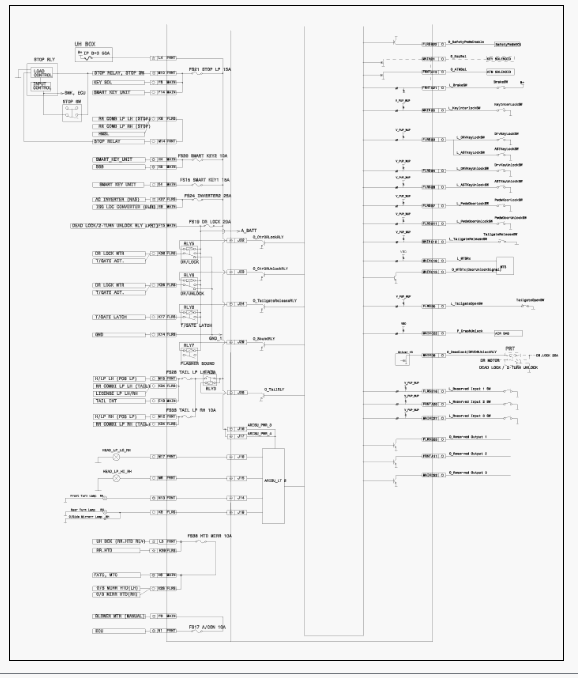

Fig 4: Intelligent Integrated Platform Module - Circuit Diagram (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
