Home › Hyundai › 2012 › Veloster Standard Trans › Repair and Diagnosis › Electrical › Charging Systems › Charging System › Alternator › Components and Components Location › Components

Components and Components Location: Components

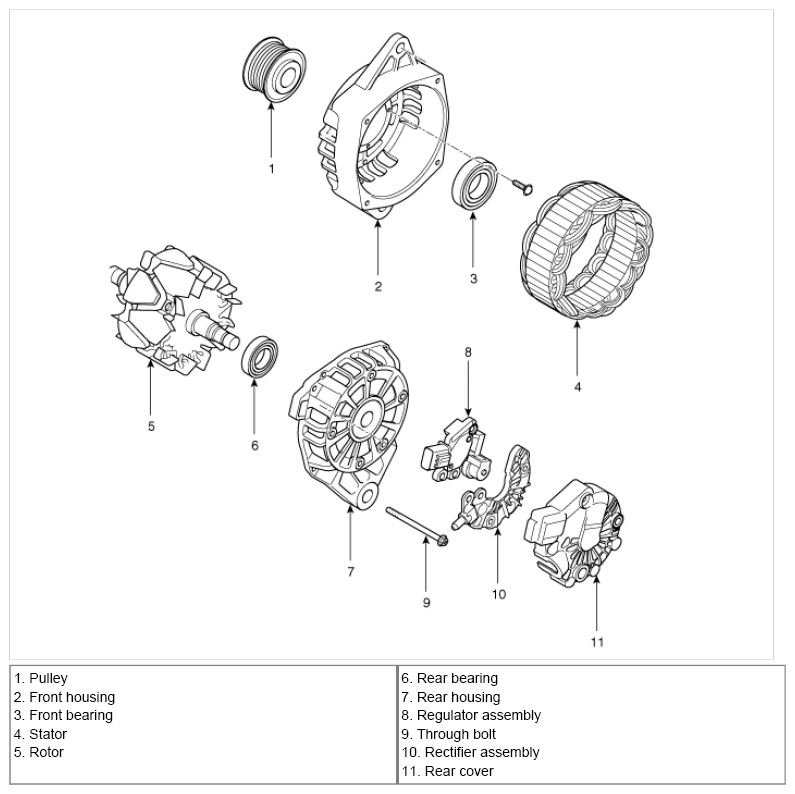

Fig 1: Identifying Alternator Components
G08806870Courtesy of HYUNDAI MOTOR AMERICA
